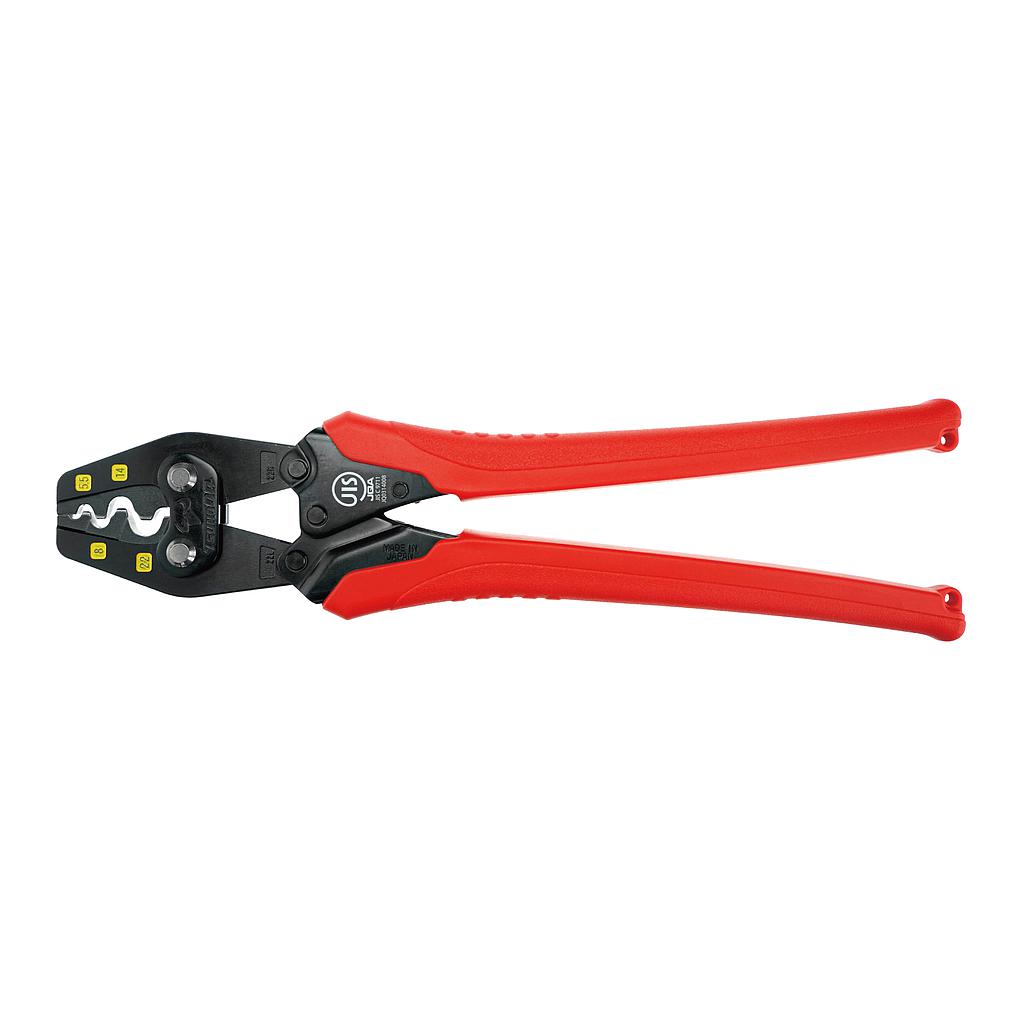

Tsunoda TP-22 Crimping Tool For Non-Insulated Terminals (5.5~22㎟)

Overall length: 345mm
Head width: 63mm
Head thickness: 7mm
Handle width: 86mm
Weight: 760g
EAN-code (4952269): 114263
Terminal size:
JIS: 5.5/8/14/22㎟
IEC/DIN: 6/10/16/24㎟
AWG: 10/8/6/4
Crimped Mark: 5/8/14/22
Material: Alloy steel
Head hardness [HRC]: 42~46
Handle part hardness [HRC]:  46~49
Handle cover: Elastomeric molded resin grips
