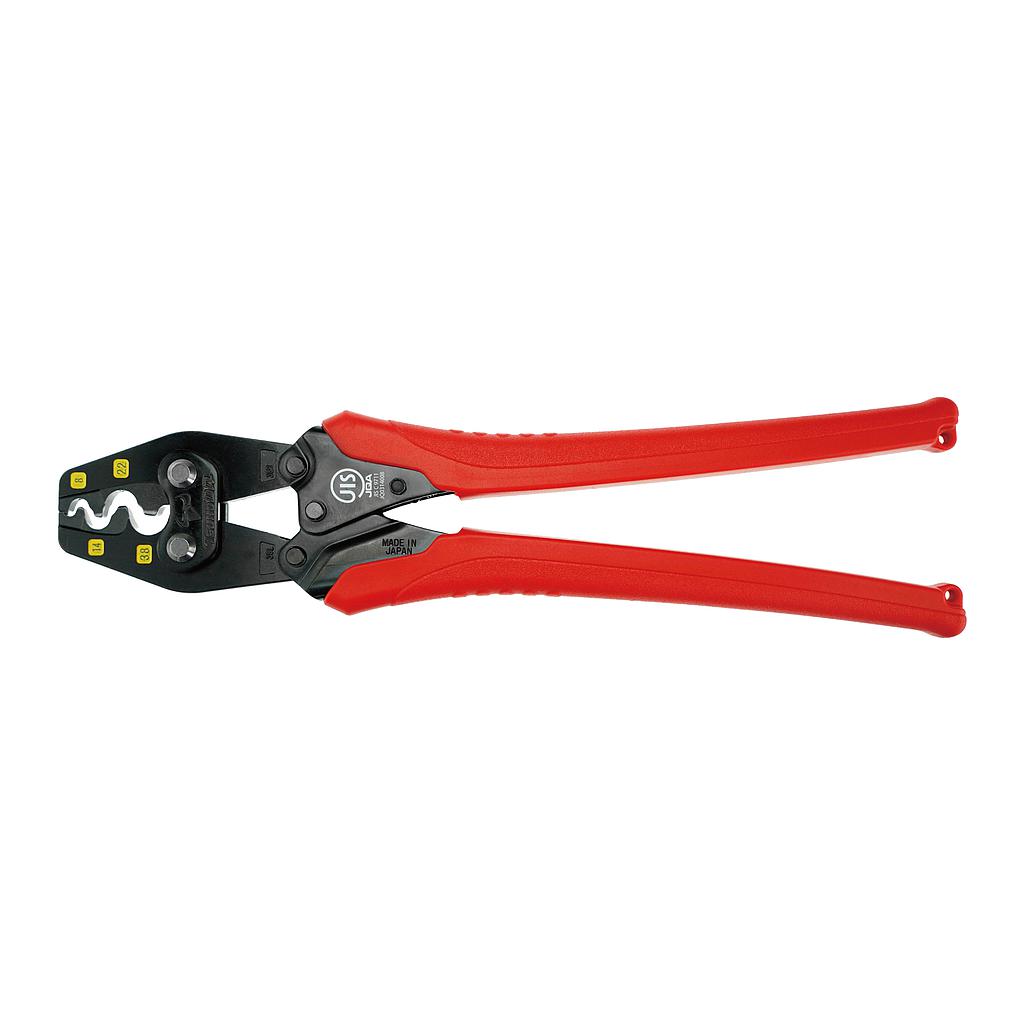

Tsunoda TP-38 Crimping Tool For Non-Insulated Terminals (8~38㎟)

Overall length: 345mm
Head width: 63mm
Head thickness: 7mm
Handle width: 86mm
Weight: 760g
EAN-code (4952269): 114270
Terminal size:
JIS: 8/14/22/38㎟
IEC/DIN: 10/16/24/35㎟
AWG: 8/6/4/2
Crimped Mark: 8/14/22/38
Material: Alloy steel
Head hardness [HRC]: 42~46
Handle part hardness [HRC]: 46~49
Handle cover: Elastomeric molded resin grips
