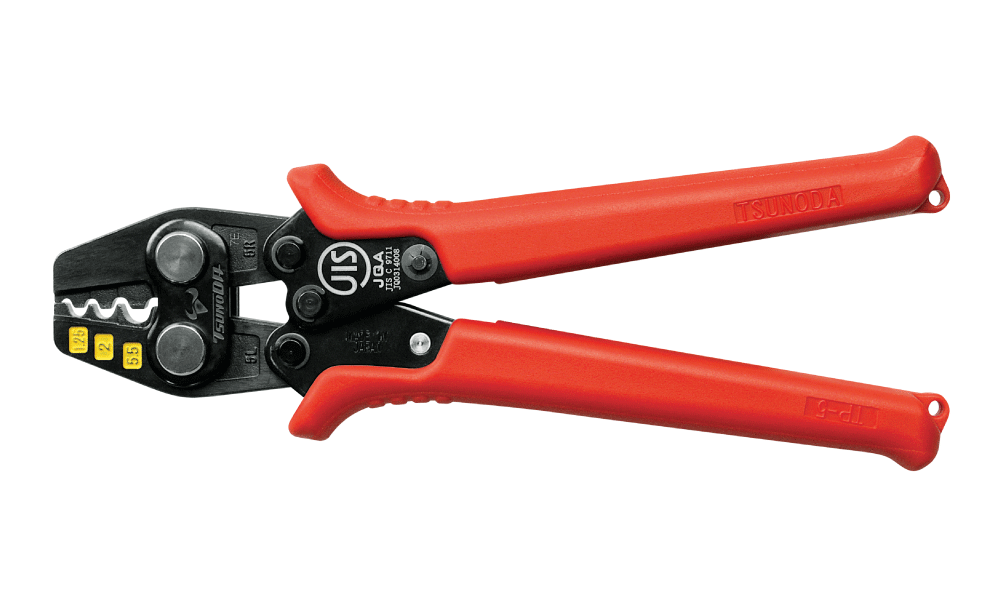

Tsunoda TP-5 Crimping Tool For Non-Insulated Terminals (1.25~5.5㎟)

Overall length: 176mm
Head width: 37mm
Head thickness: 6mm
Handle width: 65mm
Weight: 220g
EAN-code (4952269): 113679
Terminal size:
JIS: 1.25/2/5.5㎟
IEC/DIN: 1.5/2.5/6㎟
AWG: 16/14/10
Crimped Mark: 1/2/5
Material: Alloy steel
Head hardness [HRC]: 42~48
Handle part hardness [HRC]: 43~47
Handle cover: Elastomeric molded resin grips

Detail

Datasheet
