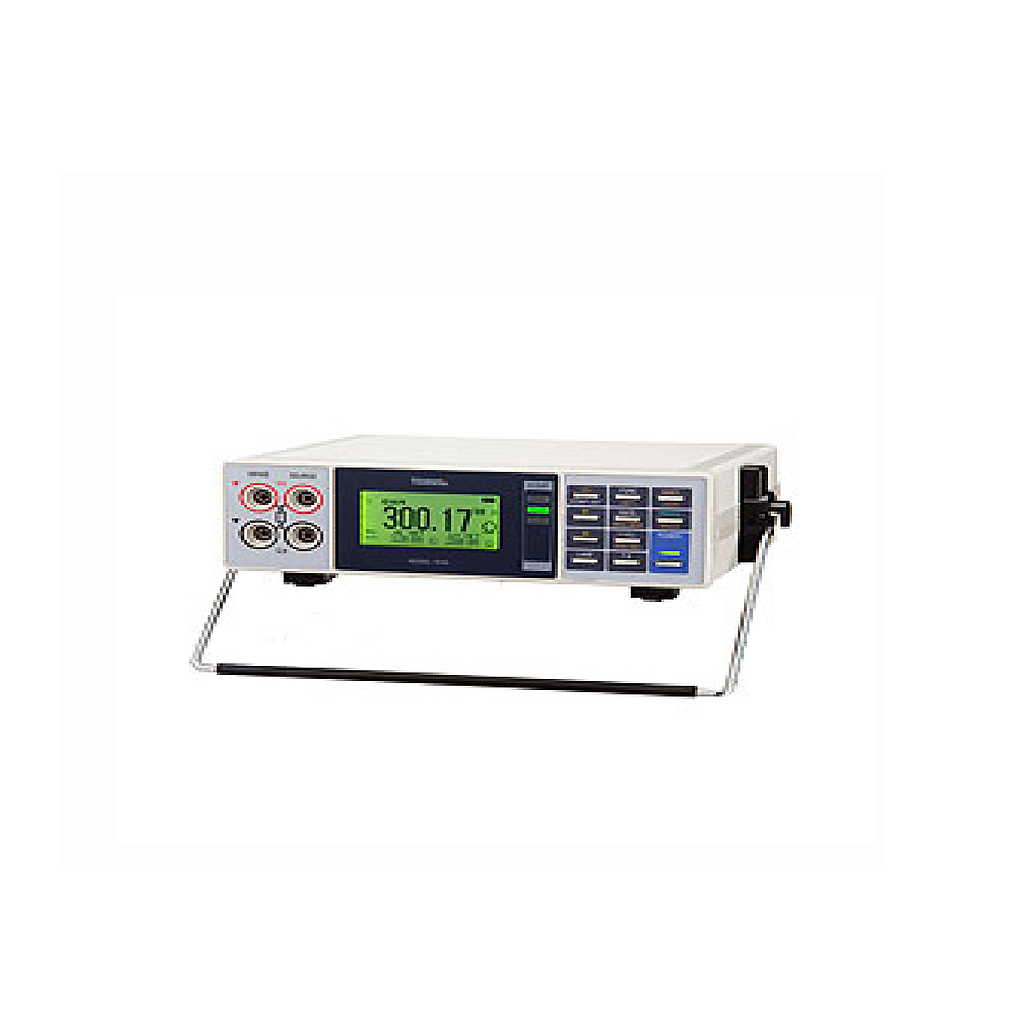

TSURUGA 3568 便携式欧姆计 (30kΩ)

3568    : No data output
3568-03    : BCD output, TTL level
3568-04    : BCD output, Open collector
3568-05    : RS-232C
Measurement ranges    300m-ohm、3, 30, 300, 3k and 30k-ohm、  6ranges
Accuracy    Resistance measurement: ±(0.08% of rdg. + 3digit) typ.
Temperature measurement: ±(0.2% of rdg. + 0.2°)
Measurement current    From DC 100mA to 10μA
Max. Applied voltage    100V, AC, DC, for all ranges (10V DC at temperature measuring range)
Sampling time    4/sec. (SLOW mode) 20/sec. (FAST mode)
Response speed    500msec. (SLOW mode) 100msec. (FAST mode)
Measurement method    4-terminal method (resistance measurement)
Temperature measuring range    Pt 100 ohm : from -19.9 to 199.9 degree C
Power supply    LR6 (AA) Alkaline batteries × 6, AC adaptor (100/ 200V +/- 10%)
Weight    Approx. 1 kg
Dimensions    206 (W) x 65 (H) x 169 (D) mm
Accessories    Kelvin clip , AC adaptor, LR6(AA)Alkaline batteries × 6
