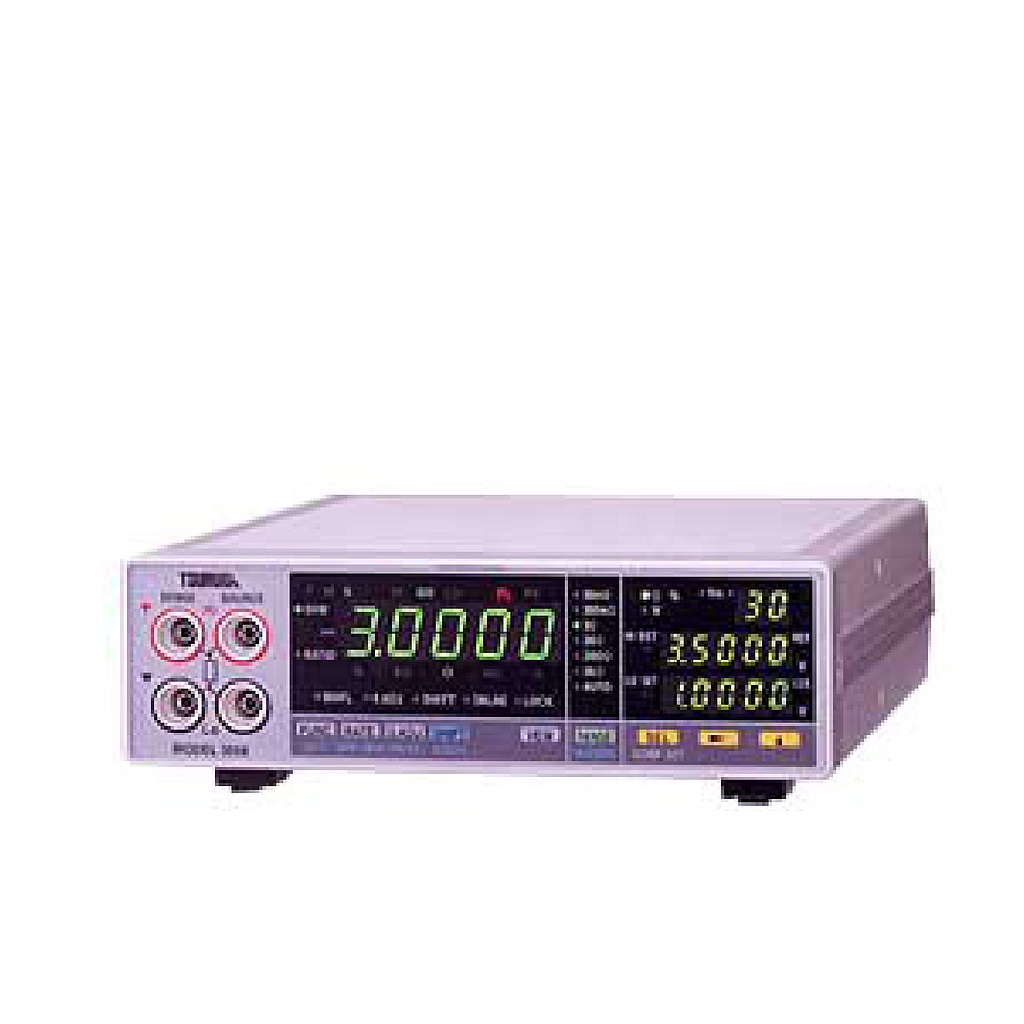

TSURUGA 356E AC 低电阻表 (300mΩ)

Nil : Open collercter NPN

RY : Relay output

Resistance range    30 mOHM, 300mOHM, and 3OHM

Voltage range    DC 5V and DC 50V

Accuracy (representative)    Resistance : ±(1.0% of rdg. + 15digit)

Voltage : ±(0.05% of rdg. + 5digit)

Frequency    AC 10kHz ±200Hz

Measuring Current    7.4mA (for 30 mOHM), 1mA(for 300mOHM), 100μA (for 30OHM)

Allowable applived voltage    DC60V for all range

Sampling rate and Response speed

SLOW mode:    1.56 time/sec. 1.92s for 50Hz; 1.88 time/sec. 1.60s for 60Hz

MEDIUM mode:    6.25 time/sec. 800ms for 50Hz; 7.52 time/sec. 667ms for 60Hz

FAST mode:    50 time/sec. 100ms for 50Hz

60 time/sec. 84ms for 60Hz

Measurement method    AC Four(4) terminal system

Power supply    AC100 to 240V 50/60Hz

Weight    Approx. 1 kg

Dimensions    206 (W) x 65 (H) x 169 (D) mm

Optional Accessories

Kelvin clip 5811-24B

Power Supply fuse, Power Supply code, Connector for input
