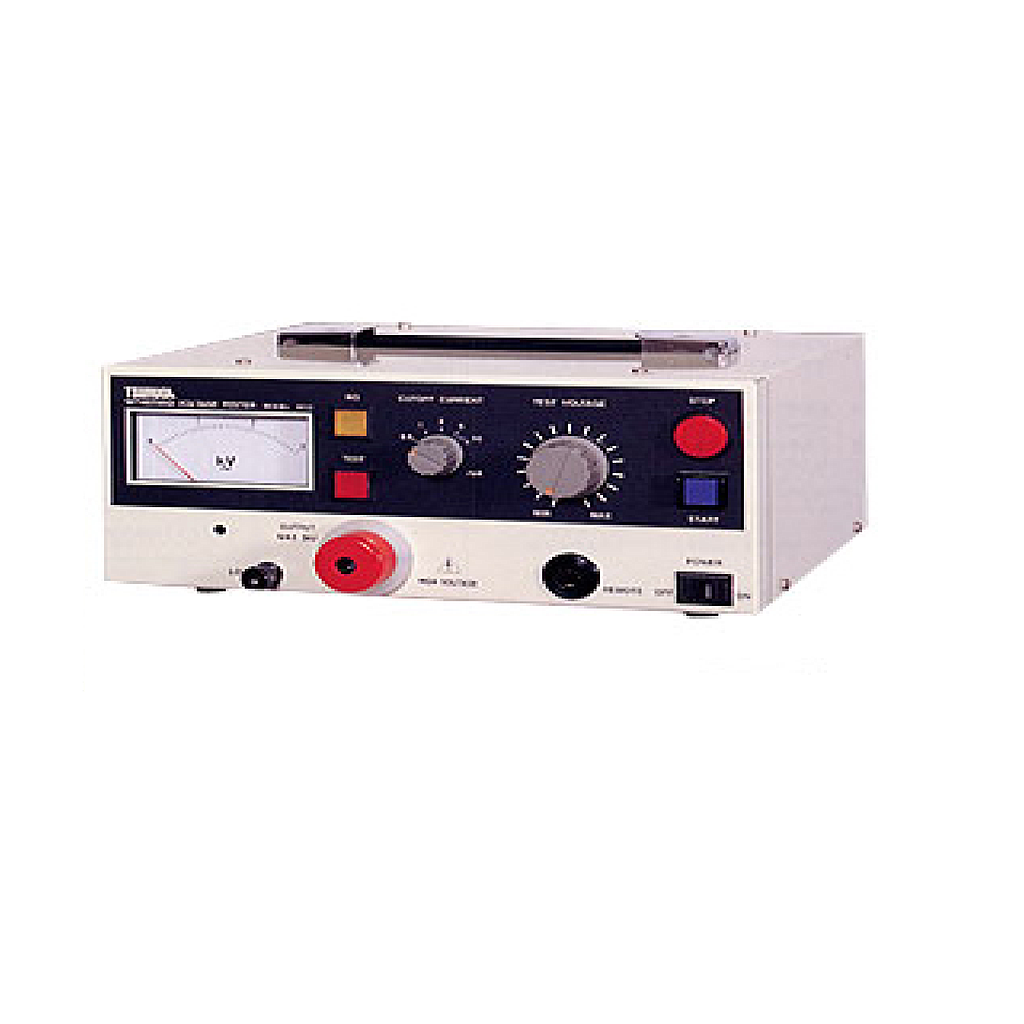

TSURUGA 8522 耐电压绝缘试验器 (3kV)

Measurement voltage    AC 0 to 3.0KV

voltage output system    Zero-cross throw switch

setting of voltage    Manual setting by volt slider

Accuracy of voltage    ±1.5% of F.S.

Adjustable range    0.5 / 1 / 2 / 5 / 10 mA

Accuracy of current    ±( 5 % + 0.1mA )

Setting time    0.5 sec. to 30min.

Judgement of test result    High limit

Power supply    90 to 110V AC, 50/60HZ

Weight    Approx. 5.5kg

Dimensions    260 (W) x 110 (H) x 220 (D) mm

Accessories    2m High-voltage cable(1), 3m Earth wire(1), 2.5m Power cord(1),

5P-DIN plug(1), Fuse(1)
