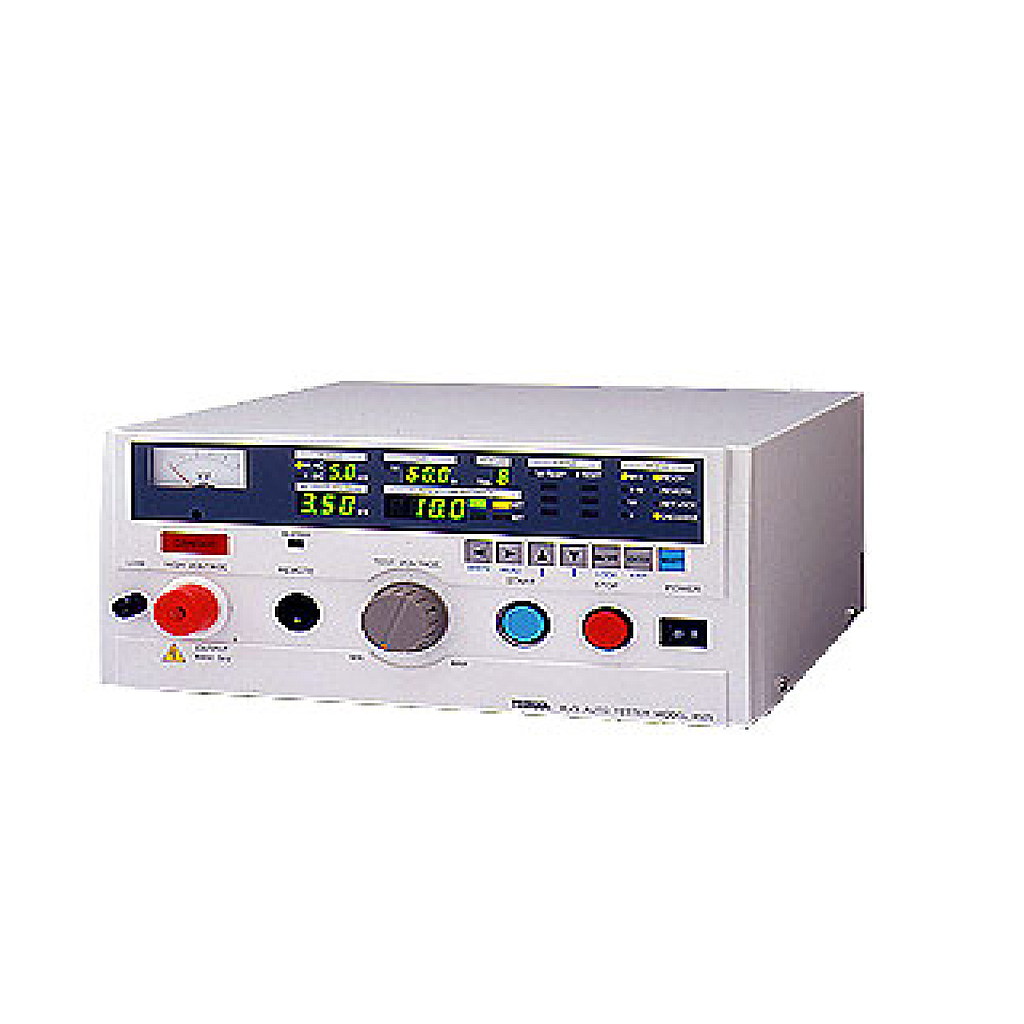

TSURUGA 8525 耐电压绝缘试验器 (5kV)

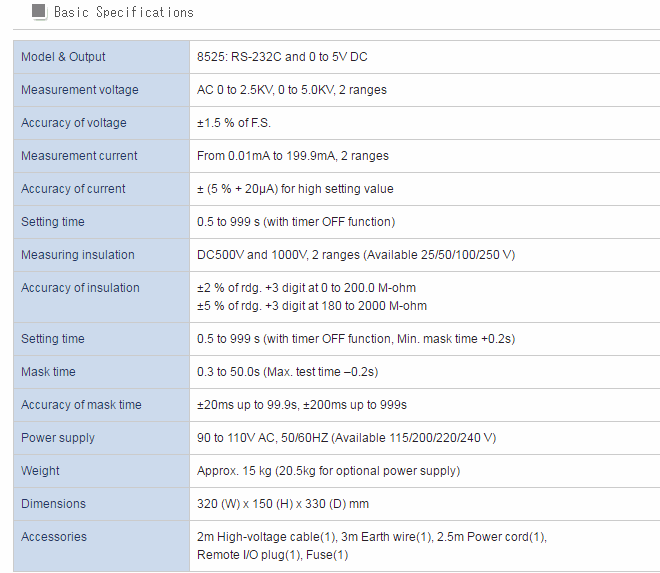

Model & Output    8525: RS-232C and 0 to 5V DC
Measurement voltage    AC 0 to 2.5KV, 0 to 5.0KV, 2 ranges
Accuracy of voltage    ±1.5 % of F.S.
Measurement current    From 0.01mA to 199.9mA, 2 ranges
Accuracy of current    ± (5 % + 20µA) for high setting value
Setting time    0.5 to 999 s (with timer OFF function)
Measuring insulation    DC500V and 1000V, 2 ranges (Available 25/50/100/250 V)
Accuracy of insulation    ±2 % of rdg. +3 digit at 0 to 200.0 M-ohm
±5 % of rdg. +3 digit at 180 to 2000 M-ohm
Setting time    0.5 to 999 s (with timer OFF function, Min. mask time +0.2s)
Mask time    0.3 to 50.0s (Max. test time –0.2s)
Accuracy of mask time    ±20ms up to 99.9s, ±200ms up to 999s
Power supply    90 to 110V AC, 50/60HZ (Available 115/200/220/240 V)
Weight    Approx. 15 kg (20.5kg for optional power supply)
Dimensions    320 (W) x 150 (H) x 330 (D) mm
Accessories    2m High-voltage cable(1), 3m Earth wire(1), 2.5m Power cord(1),
Remote I/O plug(1), Fuse(1)
