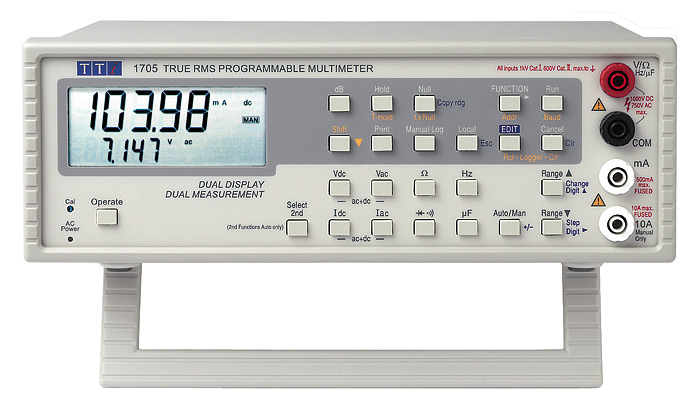

TTI 1705 数字台式万用表

● High performance 12,000 count autoranging DMM
● High accuracy and resolution: 0.04%, 10µV, 10m
● Dual display and dual measurement technology ✱
● Large and clear LCD (17mm digits) with annunciators ✱✱
● True RMS ac functions; Frequency and Capacitance
● Wide range of computing functions, e.g. Ax + b
● 100 step data-logger, timed or triggered logging
● RS232 interface standard, GPIB interface optional
● Mains and battery operation as standard
RS232: Baud rates 2400, 9600 or 19200. Complies fully with
the ARC (Addressable RS232 Chain) interface standard.
Address selectable from the front panel.
GPIB (option): The 1705 can be specified with an IEEE-488 interface.
This version operates only from AC mains.
AC Input: 115/230 Volts AC nominal 50/60Hz by internal adjustment;
5VA max.
Batteries: 6 x C cells, disposable or rechargeable.
Battery Life: >150 hours from alkaline disposable cells,
typically 70 hours from rechargeable cells.
Operating Range: +50o
C to + 40o
C, 20% to 80% RH
Storage Range: -20o
C to + 60o
EMC & Safety: Complies with EN61326 and EN61010-1 respectively
Size and Weight: 260(W) x 88(H) x 235(D)mm, excl. handle/feet. 2.0kg.


Download datasheet
