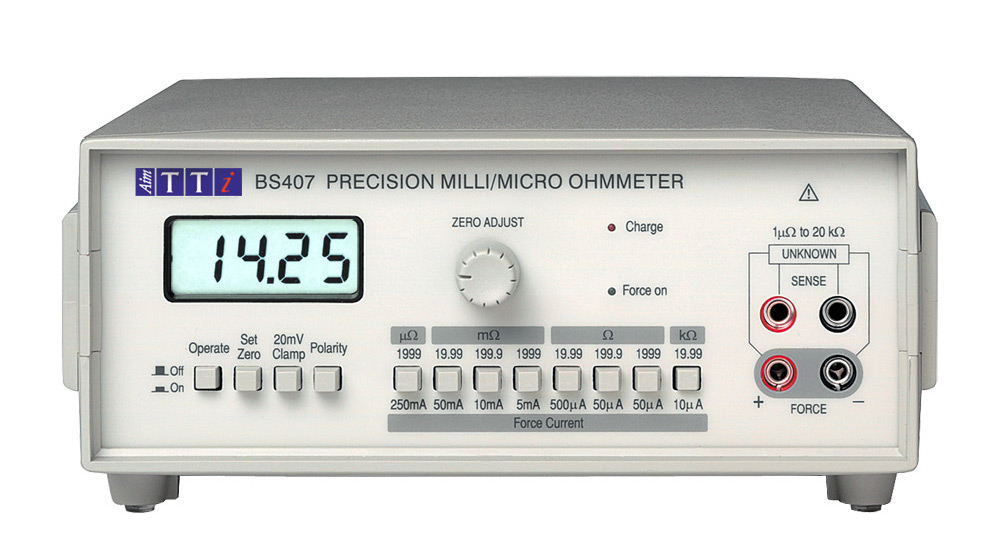

TTI BS407 微欧姆电阻表 (19.99 kΩ, 0.1%)

RANGES AND ACCURACY
1999 µ 1 µ 250 mA 500 µV ± 0.1% reading ± 0.4% scale
19.99 m 10 µ 50 mA 1 mV ± 0.1% reading ± 0.2% scale
199.9 m 100 µ 10 mA 2 mV ± 0.1% reading ± 0.1% scale
1999 m 1 m 5 mA 10 mV ± 0.1% reading ± 0.1% scale
19.99  10 m 500 µA 10 mV ± 0.1% reading ± 0.1% scale
199.9  100 m 50 µA 10 mV ± 0.1% reading ± 0.1% scale
1999  1  50 µA 100 mV ± 0.1% reading ± 0.1% scale
19.99 k 10  10 µA 200 mV ± 0.1% reading ± 0.2% scale
GENERAL
Display: 3.5 digit LCD with 12.5mm characters.
Casing: ABS casing with metal tilt stand giving approx. 15o angle.
Power: 220 - 240V, 110 - 120V or 100V ±10%, 50/60Hz, adjustable
internally; 20VA max. Installation Category II.
Operating Range: +5o
C to + 40o
C, 20% to 80% RH.
Storage Range: -10o
C to +50o
C
Environmental: Indoor use at altitudes to 2000m, Pollution Degree 2.
Electrical Safety: Complies with EN61010-1.
EMC: Complies with EN61326.
Size: 220(W) x 88(H) x 230(D) mm, (10.3 x 3.4 x 9.2")
excluding feet and tilt stand.
Weight: 1.3 kg (3lb).
