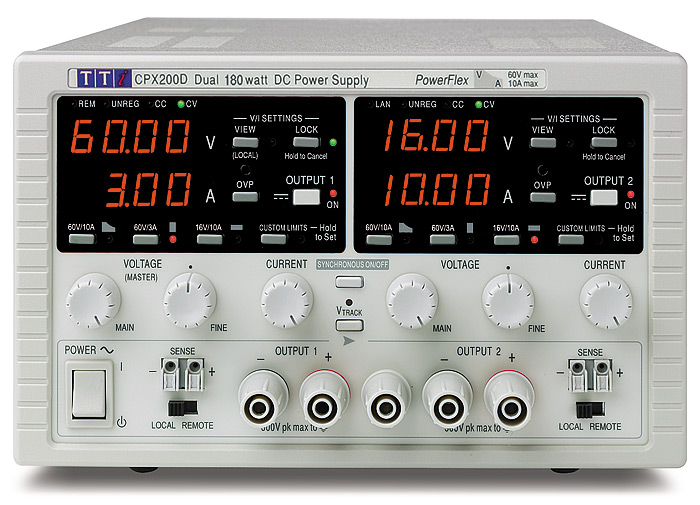

TTI CPX200DP 双路可编程直流电源 (2Chanel, 0~60V, 0~10A, 360W, RS232/USB/GPIB/LAN)

Voltage/Current/Power Levels
Voltage Range: 0V to 60V.
Current Range: 0A to 10A.
Note: Actual maxima for voltage and current are typically 1% greater than the figures given above.
Power Range: Up to 180W subject to power envelope.
The maximum current at any voltage settings is limited by the power envelope which is set to
give 3A at 60V rising to 10A at 16V under all ac supply conditions (both outputs loaded). At
lower output voltages the power is restricted by the 10 amps current maximum.
See PowerFlex power envelope graph on page four.
Output Setting & Control
Voltage Setting: By coarse and fine controls.
Current Setting: By single logarithmic control.
Output Mode: Constant voltage or constant current with automatic cross-over.
CC indicator lit in constant current mode.
Output Switch: Electronic, non isolating. Preset voltage and current limit displayed
when Output is off. Output rise time no load <10ms.
View Settings: With the output On, the meters show actual voltage and current.
The preset levels can be viewed and adjusted at any time by pressing
the View Settings button.
Status Indication: LED indication of Output On, V/I Limits, CV, CI, Power Limit, Remote,
LAN status. Message on meter display for trip condition.
(Settings Lock) Voltage and current settings can be locked by a single button press.
Lock accuracy is equal to the meter accuracy (see Meter Specifications).
Output Performance
Ripple & Noise: Typically <1mv rms="" 15mv="" pk-pk="" 3mv="" rms="" max="" in="" cv="" mode="" br=""> Load Regulation: Voltage - <0·01% of maximum output for any load change within
the PowerFlex envelope (remote sense connected).
Current - <0·05% of maximum output for any load change within
the PowerFlex envelope.
Line Regulation: Voltage - <0·01% of maximum output for a 10% line change.
Current - <0·01% of maximum output for a 10% line change.
Transient Response: <250µs to within 50mV of setting for a 5% to 95% load change.
Temp. Coefficient: Typically <100ppm/°C
Output Protection
Output Protection: Forward protection by Over-voltage Protection (OVP) trip.
Reverse protection by diode clamp for currents to 3A.
OVP Setting/Range: Via screwdriver adjustable preset on front panel. Range 1V to 66V
Over-temperature: Output trips off for over-temperature.
Safety Interlocks: Operations that could cause an unexpected change in voltage or
current settings are interlocked with the output switch.
Output Connections
Output Terminals: Universal 4mm safety binding posts on 19mm (0·75”) spacing at front.
Screw terminals at rear (CPX200DP only).
Terminals can accept fixed shroud 4mm plugs, standard 4mm plugs, fork terminals and bare wires.
Remote Sense
Sense Selection: Voltage sensing is selected as Local or Remote by front panel switch.
Sense Terminals: Sprung loaded screw-less terminals at front.
Screw terminals at rear (CPX200DP only).
Display Type: Dual 4-digit meters, 10mm (0·39”) LED.
Voltage Meter
Resolution/ Accuracy: 10mV / ± 0·1% of reading ± 2 digits
Current Meter
Resolution/ Accuracy: 10mA / ± 0·3% of reading ± 20mA
AC Input: 110 to 240 volts ±10% 50/60Hz. Installation Category II.
Input Power: 500VA max.
Temperature & Environmental
Operating Range: +5ºC to +40ºC, 20% to 80% RH
Storage Range: -40ºC to + 70ºC
Environmental: Indoor use at altitudes up to 2000m, Pollution Degree 2.
Cooling: Rear discharge variable speed fan.
Safety & EMC
Safety: Complies with EN61010-1
EMC: Complies with EN61326
Size: 210 x 130 mm (½ rack 3U) x 377mm
(size excludes feet, knobs and terminals).
Weight: 5.0kg (11lb)
