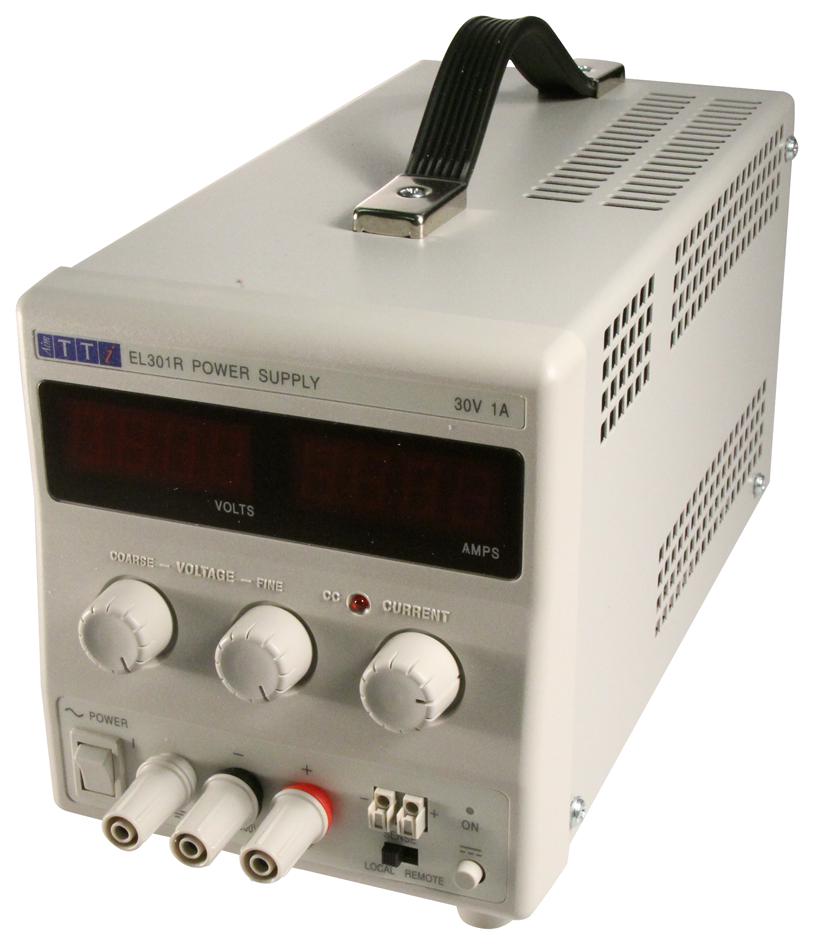

EL301R 0 to >30V; 0 to >1A (30W nominal power)
Display Type: Dual 4-digit meters, 14mm (0·56”) LED.
Voltage Meter
Resolution: 10mV
Accuracy: 0·3% of reading ± 3 digits
Current Meter
Resolution: 1mA
Accuracy: 0·5% of reading ± 3 digits
AC Input: 230V AC or 115V AC ± 10%, 50/60Hz. Installation Category II
VA Ratings: EL301R - 85 VA; EL302R, EL302P, EL183R, EL561R - 160VA;
EL155R, EL303R - 250VA; EL302RD, EL302RT - 320VA
Safety & EMC
Safety: Complies with EN61010-1
EMC: Complies with EN61326
Physical
Size: Single output models - 140x160x295 mm (WxHxD).
Dual and triple output models - 260x160x295 mm (WxHxD).
Weight: EL301R - 3.4kg; EL302R, EL302P, EL183R, EL561R - 4.4kg:
EL155R, EL303R - 5.0kg; EL302RD, EL302RT - 7.5kg
