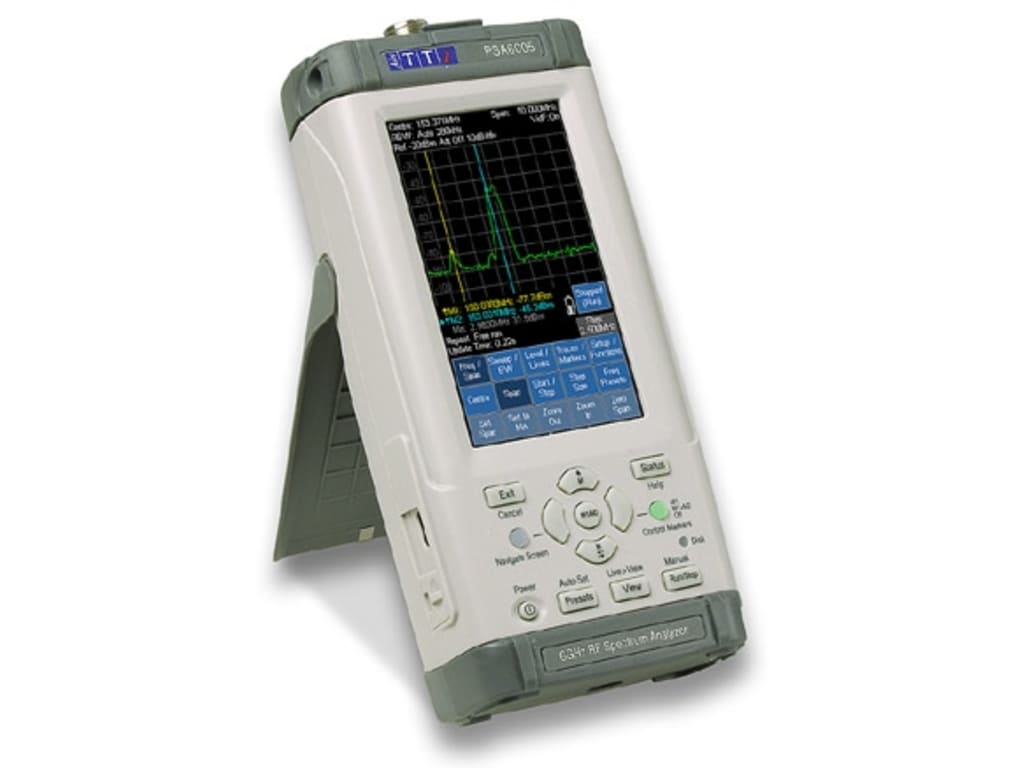

TTI PSA3605 便携式射频频谱分析 (3.6Ghz)

FREQUENCY MEASUREMENT
Frequency Span
Frequency Range: 10 MHz to 3600 MHz (PSA3605)
10 MHz to 6000 MHz (PSA6005)
Setting Modes: Centre frequency plus Span,
or Start plus Stop frequencies
Maximum Span: 5990 MHz (PSA6005)
3590 MHz (PSA3605)
Minimum Span: 27 kHz, or Zero Span with demodulation
Set. Resolution: 100 Hz at any frequency
Setting Accuracy: Reference Frequency Accuracy for Start,
Stop & Centre (Zero-Span) frequencies
Reference Frequency Accuracy
Initial Accuracy: Better than ± 1 ppm at 20 o
C
Stability: Better than ± 1 ppm over 10 o
C to 30 o
C
Ageing: Better than ± 1 ppm per year
Phase Noise (Typical)
Carrier at 1 GHz: -83 dBc/Hz at 30 kHz offset
-99 dBc/Hz at 100 kHz offset
-116 dBc/Hz at 1 MHz offset
Carrier at 3 GHz: -94 dBc/Hz at 30 kHz offset
-109 dBc/Hz at 100 kHz offset
-117 dBc/Hz at 1 MHz offset
Carrier at 6 GHz: -83 dBc/Hz at 30 kHz offset
 (PSA6005 only) -97 dBc/Hz at 100 kHz offset
-114 dBc/Hz at 1 MHz offset
Resolution Bandwidth
RBW: Selectable between 10 MHz and 300 Hz
selectable in 1:3:10 sequence, or Auto
Video Filtering: Selectable between 10 MHz and 300 Hz
selectable in 1:3:10 sequence, or RBW Tracking
Markers
No. of Markers: One, Two (or None)
Resolution: 0.1 kHz at all frequencies
Marker Accuracy: 1/270th of Span ± 10Hz plus reference
 frequency accuracy.
Readout: The frequencies at the marker points and
the frequency difference are displayed
Functions: Normal (Scroll Mode), Peak Find Mode,
Peak Track Mode, Frequency Measurement
Marker Frequency Counter
Frequency counted at the current active marker (M1 or M2) in
sweep or zero-span mode
Resolution: 10Hz, 100Hz or 1kHz
Accuracy: Reference frequency accuracy +/- 1 count
for signal > noise level +25dB
Channel Markers (only with Option U02)
Channel markers are a special case of Limit Patterns (see
Amplitude Limits within next section). Channel markers are
vertical lines at frequency points defined within a file. Most
commonly they will be used to mark channel centre frequencies
or channel boundaries.
No. of Points: Up to two files, each containing up to 49
points, can be displayed in differing colours.
Marker Files: Files are created using PSA-Manager
software. Up to 999 files can be stored.
AMPLITUDE MEASUREMENT
Amplitude Range
Units: Selectable as dBm or dBµV
Display Range: 84 dB from reference level
Magnification: x2, x5 or x10
Reference Level: Selectable between -40dBm and +20 dBm
(67dBµV to 127dBµV) in 1dB steps
Amplitude Accuracy
Calibration Level
Accuracy: Better than ± 1 dB at 10dB below ref.
level @ 2000MHz (20o
C ± 5o
C)
Flatness: Better than ± 1 dB relative to 2000MHz
over the the full operating frequency range
Linearity: Better than ± 1 dB over 60dB range down
from the reference level
Markers
No. of Markers: One, Two (or None)
Resolution: 0.1 dB
Readout: The level at the marker points and
difference are displayed.
Displayed Units: dBm, dBuV, mV or uW
Functions: Normal (Scroll Mode), Peak Find Mode,
Peak Track Mode, Frequency Measurement
Displayed Average Noise Level (DANL)
DANL: Better than – 120 dBm (-13 dBuV) average
displayed noise floor (ref. level = – 40 dBm
RBW = 10 kHz, VBW = 1 kHz, span 1 MHz)
for frequency range 10MHz to 5.5GHz
Noise per Hz Better than -160 dBm/Hz equivalent
MECHANICAL
Size: 192mm high x 92mm wide x 49mm deep
(height excludes RF input connector)
Weight: 580 grms.
Tilt Stand: Built-in tilt stand for bench use which angles
the unit at 40 degrees to the horizontal.
Stylus: Casing incorporates plug-in stylus.
