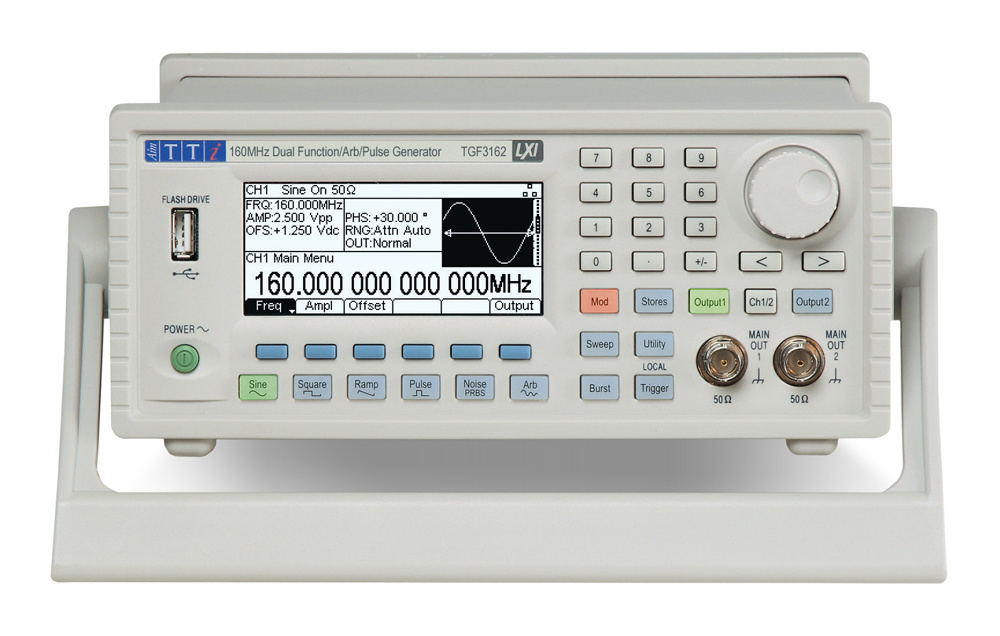

TTI TGF3082 函数发生器, 任意

 0.001mHz to 80MHz (TGF3082) or 160MHz (TGF3162) sine frequency range

High sine wave purity with low phase noise and jitter, audio band THD down to 0.05%

Square waves up to 50MHz with variable duty cycle, edge speeds down to 5ns

Resolution of up to 15 digits or 1µHz, high stability TCXO timebase

Two identical channels - independent or linked with coupled and tracking modes

Inter-channel phase offset of -360o to +360o with 0.001o resolution

Pulse generation with 100ps width resolution, <30ps jitter, and variable rise/fall times

Wideband noise generator with up to 100MHz noise bandwidth

PRBS pseudo-random bit sequence generation with 8 sequence lengths

Harmonics generation using up to 16 harmonics

Wide range of standard and arbitrary waveforms built-in

Arbitrary waveforms of 14-bits / 400MSa/s (TGF3082) or 16-bits / 800MSa/s (TGF3162)

Waveform Manager Plus for Windows editing software included

Front USB host socket for waveform storage and file transfers using Flash drives

Comprehensive internal/external digital and analog modulation set including Sum

 Modulation frequencies up to 10MHz internal and 5MHz external Gate and Burst modes with internal and external triggering

Bi-directional linear and logarithmic sweep using internal or external triggering

125MHz frequency counter/timer with five measurement modes

Compact half-rack 2U casing with protective buffers and handle  Programmable via USB and LAN (LXI) interfaces; GPIB optional
