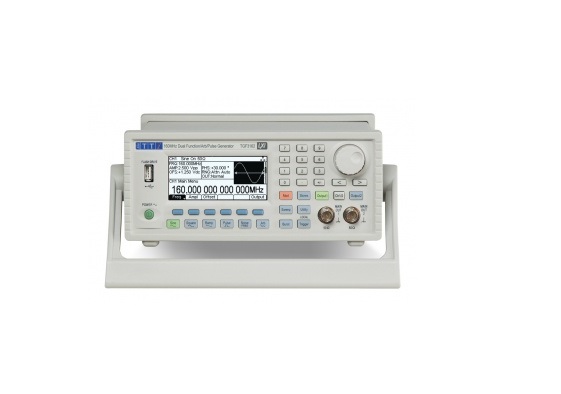

TTI TGF3162 任意函数发生器 (160 MHz, 2频道)

No. of channels: 2

Max frequency (sine): 160MHz

Vertical bits / Sample rate: 16 bits / 800MSa/s

Noise bandwidth: 100MHz

Model specific features:

 PRBS Generator: Standard

 Harmonics Generator: Standard

 Sum Modulation: Standard

INTERFACES: LAN, USB and optional GPIB interfaces.

 Inter-channel coupling & tracking: Standard

Size: Bench Top: 97mm height; 250mm width; 295mm long

Rack mount: 86.5mm (2U) height; 213.5mm (½-rack) width; 269mm long

Weight: 3.2kg

Operating Range: +5°C to 40°C, 20-80% RH.

Storage Range: -20°C to + 60°C

Detail

Datasheet
