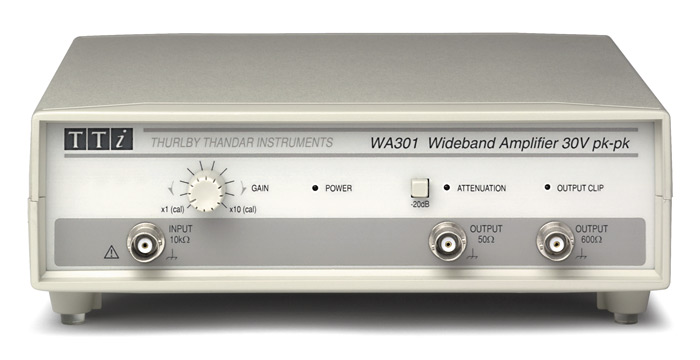

TTI WA301 RF放大器 (1Mhz, 30V pk-pk)

Bandwidth: -3dB at 1MHz
Flatness: -1dB at 400kHz
Rise/fall time: <0.5µs
Distortion: <0.1% at 1kHz
Gain: Vernier adjustment between x1 and x10
Input impedance: 10kΩ
OUTPUT
Output impedance: 50Ω and 600Ω (separate sockets)
Output 0dB: 30V pk-pk max. from 50Ω (15V into 50Ω)
30V pk-pk max. from 600Ω (15V into 600Ω)
Output -20dB: 3V pk-pk max. from 50Ω (1.5V into 50Ω)
3V pk-pk max. from 600Ω (1.5V into 600Ω)
DC offset: <5mV
GENERAL
Power: 230V or 115V AC nominal 50/60Hz, adjustable
internally; operating range ±14% of
nominal; 20VA max.; Installation category II
Size: 210(W) x 75(H) x 230(D)mm, inc. feet.
Weight: 1.1kg
Operating Range: + 5°C to 40°C, 20-80% RH.
Storage Range: - 40°C to 70°C
Safety: Complies with EN61010-1.
EMC: Complies with EN55081-1 and EN50082-1.
