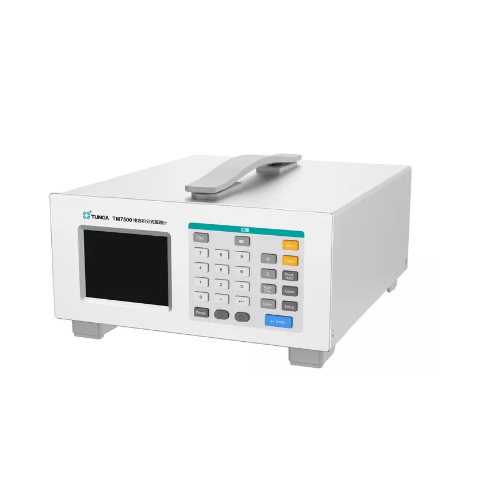

Tunkia TM7500 磁通计 (Class 0.2, 0.2 mWb～2 Wb)

Range: 2 mWb, 20 mWb, 200 mWb, 2 Wb

Resolution: 0.1 μWb, 1 μWb, 10 μWb, 0.1 mWb

Measuring Range: 0.2 mWb～2 Wb

Accuracy:

Class 0.2: ±(0.2%*RD + 10 μWb)

Zero Drift: Max (1 μWb/min or 0.05%*RG/min)

Analog Output (option): 0~± 5 V or 4~20 mA

Remark: RD is the reading value, RG is the range value

- General Specifications:

Power Supply: AC ( 220 ± 22 ) V，( 50 ± 2 ) Hz

Temperature Performance:

Operating temperature: 0°C～40°C

Storage temperature: -20°C～70°C

Humidity Performance:

Working humidity: 40%～85% R•H, Non-condensing

Storage humidity: < 95% R•H, Non-condensing

Weight: About 5 kg

Interface: Hall probe input, RS232, Analog output interface

Dimensions: 225 mm(W) × 295 mm(D) × 135 mm(H)
