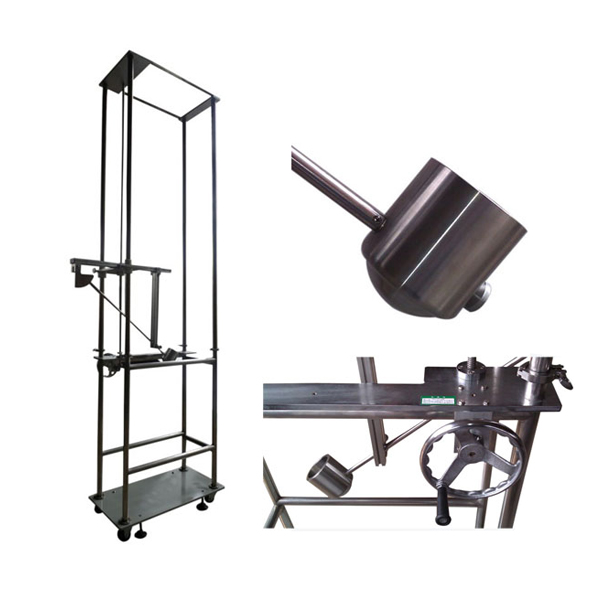

Uby Tech IK07-10 Pendulum Impact Tester

Pendulum:

- Length: 1000mm

- External diameter: 15.9mm

- Thickness: 1.5mm

- Material: steel

The impact height can be adjustable (200-1200mm). It can be customized. The impact apparatus can be moved on all sides.

Energy/J: ≤1±10%; 2±5%; 5±5%; 10±5%; 20±5%; 50±5%

Equivalent mass2%/KG: 0.25(0.2); 0.5; 1.7; 5; 5; 10

Material: Nylon steel

R/mm: 10; 25; 25; 50; 50; 50

D/mm: 18.5(20); 35; 60; 80; 100; 125

f/mm: 6.2(10); 7; 10; 20; 20; 25

r/mm: -; -; 6; -; 10; 17

L/mm: According equivalent mass  to adjust and determine
