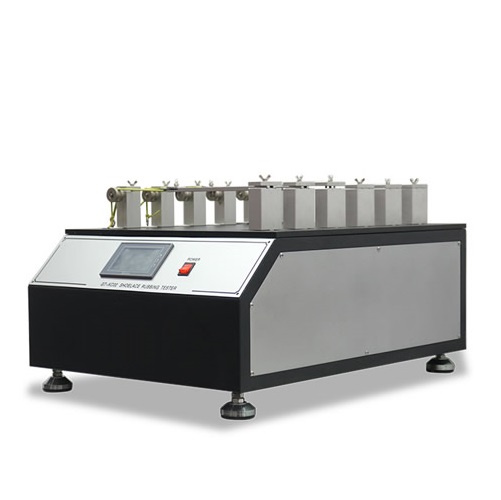

Uby Tech UF-2005 Shoe Lace and Shoe Eyelets Abrasion Test Machine (60±6 cyles/min)

Test position: 6 groups

Control: Touch-screen control, 0~999.999

Min. Separation between movable and fixed fixtures: 280±50mm

Movable fixture stroke: 35±2mm

Test speed: 60±6 cyles/min

Profile board: Angle 52.5degree; Length 120mm

Stainless metal strip: W: 25mm, L: 250mm

Weight: 250±3g

Power supply: 220V 50/60HZ

Dimensions (LxWxH): 66x58x42cm

Weight: 50kg

Standards: DIN 4843

                  SATRA TM 154

                  ISO 22774

                  QB/T 2226

                  GB/T 3903.36
