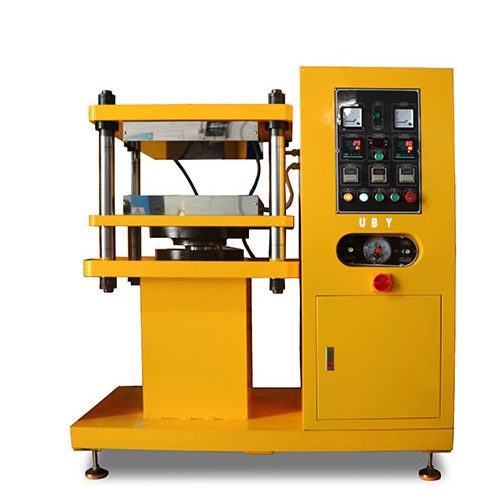

Uby Tech UP-6170C Platen Vulcanizing Press Rubber Machine (30T, 50T)
制造商: Uby Tech Model: UP-6170C 保障: 12 Month - 报价要求
- 联系
Capacity: 30T, 50T
Temp. Range: Room temp. ~300℃
Temp. Controller: LED Indicator,press key set input
Timer: LED display,time range 0.1S~99min~9.9hr
Heating type: Electrical Heating
Hot pressure plate: 300×300mm / 350x350mm / 500x500mm optional
Cold pressure plate: 300×300mm / 350x350mm / 500x500mm optional
Distance of pressure plate: 100mm
Pressure material: SKD chromium-molybdenum alloy
Pressure surface: Mirror chrome plated
Cooling temperature scope: Room temp. ~+5℃
Cooling type: Water cooling / Air cooling (optional)
Oil cylinder stroke: Max 200mm
Oil cylinder speed: 11mm/s
Pressure gauge: 0~350kg/sq.cm
Power: 10.6HP
Dimension (W×D×H): 1000×500×1500 mm
Power supply: 3 phase, AC 380V, 20A
Weight: About 600kg
