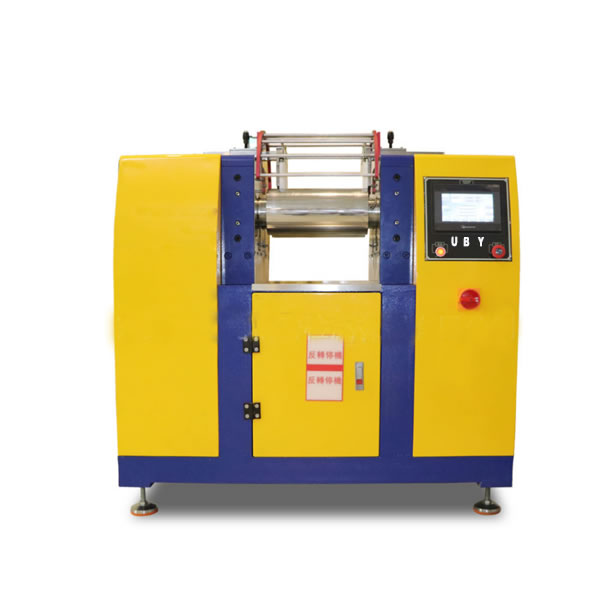

Uby Tech UP-6175A 塑料试验机 (300 °C)

- Temperature range: normal temperature ~ 300 ° C
- Temperature controller: PLC programmable color touch screen display, which can set and display the temperature, distance, revolution and other process parameters of the roller
- Temperature accuracy: ±3 °C
- Heating method: Electric heating / water cooling
- Heating medium: Heating rod
- Heating time: about 40min at room temperature ~200°C
- Revolving ratio: 1:1.27
- Roller size: Ø150×L320mm / Ø160×L320mm
- Roller spacing: adjustable from 0.05 to 8mm
- Speed: Constant speed / speed regulation (optional)
- Roll surface: HRC 60 mirror chrome
- Power: 8KW device
- Volume: 1200×530×1450 (W×D×H)mm
- Power: 3Φ, AC380V, 26A three-phase five-wire (customer-owned power supply port)
- Weight: about 375kg
- Safeguard: Pull rod parking, knee top reversing and other security devices
