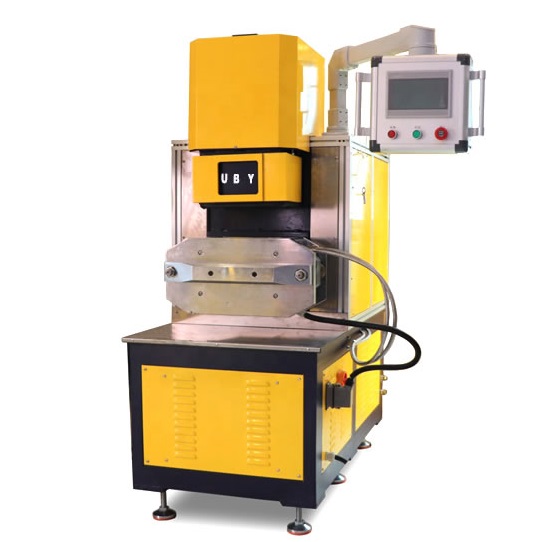

Uby Tech UP-6177A Open-close Type Banbury Rubber Intensive Kneader Mi (5L)

Effective mixing volume: 5L

Batch input: 1~3KG (depending on the proportion of the formula material)

Main motor: 7.5KW

Reducer: hard-toothed gear reducer

Pressurized cylinder: diameter 100mm

Front and rear speed ratio: 1:1.38

Front and rear speed: 0~47-34 rev / min (frequency conversion adjustable speed) Brand: Danfoss (HLP)

Heating method: electric heating

Temperature control range: normal temperature ~300 °C

Material temperature control: instrument control

Opening and closing locking device: using cylinder control

Heating power: 6.8KW

Total power: 15.3KW

Voltage: 380V, 50Hz, three-phase five-wire system

Size: L1700*W1250*H2200mm

Weight: 1600KG
