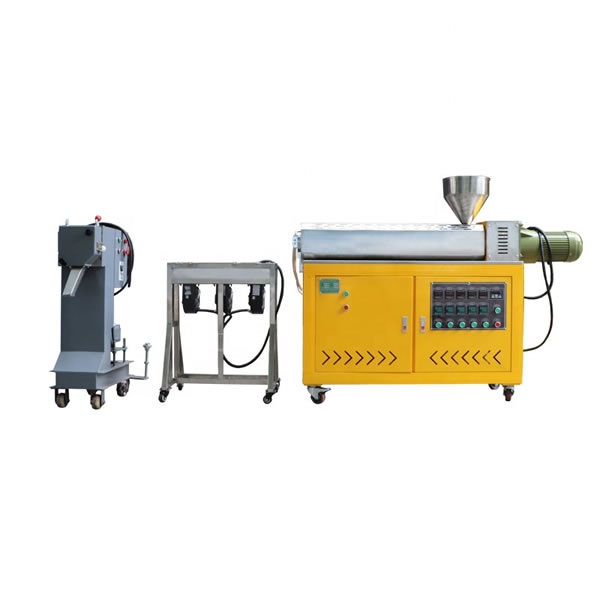

Uby Tech UP-6178E PP PE Plastic Granule Making Machine (≥8kg/h)

Screw shape: Flat same direction

Screw diameter: Ø21.7mm

Number of screws: Parallel twin screw

Screw speed: 0-120r/min frequency control

Length to diameter ratio: L/D=40:1

Cooling method: Soft water cooling

Water tank capacity: 30L

Cooling pump: 0.37KW

Maximum feed amount: ≥8kg/h;

Feeding method: Twin screw volumetric feed;

Vacuum pump vacuum: 0~0.08MPa

Vacuum pumping capacity: 20M3 /hr

Motor: 0.75KW exchange

Dryer power: 0.37KW

Pelletizer power: 0.75KW/frequency control

Host size: 2300X550X1640mm

Power supply: AC380V, 50Hz

Weight: About 1000kg
