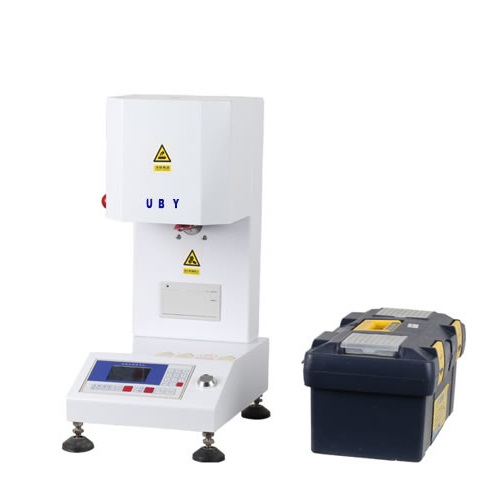

Uby Tech UP-6181 Melt Index Tester (80°-400°)

Barrel parameters: Inner hole 9.55±0.025mm

Pistons parameters: Piston head:  9.475±0.015mm

                                 Piston length: H=6.35±0.1mm

Paramters: Extrusion hole 1=2.095±0.005mm

Temperature range: 80degree centigrade~400degree centigrade

Temperature accuracy: ±0.2 degree centigrade

Display resolution: 0.1degree centigrade

Maximum comsuption: < 600W

Temperature recovery time: less 4 min

Weight parameters are as follows:

Weight accuracy: ±0.5%

Basic configuration: A 0.325kg  (including binder bar)

                                B 1.2kg

                                C 2.16kg

                                D 3.8kg

                                E 5.0kg

                                F 10kg

                                G 12.5kg

                                H 21.6kg
