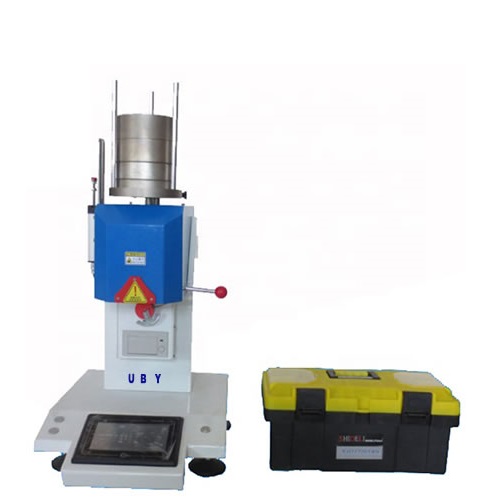

Uby Tech UP-6181B Automatic Melt Flow Index Tester (40℃-450℃)

Temperature range: 40℃-450℃

Temperature drift: 4 hours ≤0.5℃

Temperature fluctuation: ±0.2℃

Temperature uniformity of 10-70 mm above the die: ± 0.5 ℃

Temperature display resolution: 0.1℃

Time display resolution: 0.1s

Cutting timing range: 1-999s adjustable

Die diameter: Φ 2.095 ± 0.005mm (half die 1.05mm + 0.005, optional)

Outlet length: 8.000 ± 0.025mm

Piston rod diameter: 9.474 ± 0.007mm

Length of piston rod: 6.35 ± 0.13MM

Loading barrel diameter: Φ 9.550 ± 0.007mm

Test range: 0.1-150g/10min

Weight accuracy: ±0.5%

Output mode: micro automatic print output

Cutting mode: manual and automatic cutting

Test load: 8 levels in total, 8 sets of weights

Power supply voltage: AC220V ± 10% 50Hz
