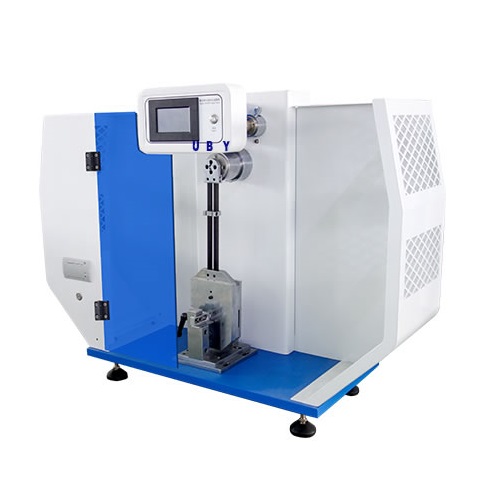

Uby Tech UP-6182B Charpy Impact Tester (1~22J, 3.5m/s)

Operating temperature: (15-35)℃

Impact speed: 3.5m/s

Impact Energy: 1J, 2,75J, 5,5J, 11J, 22J

Impact pendulum force: Pd1=0.535N•M

                                      Pd2.75=1.4737N•M

                                      Pd5.5=2.9474N•M

                                      Pd11=5.8949N•M

                                      Pd22=11.7898N•M

Bob angle: 150°±1°

Impact center distance: 335mm

Impact blade fillet radius: 0.8±0.5mm

Distance from Impact blade to the jaw: 22±0.2mm

Size: 560*300*840mm (LxWxH)

Weight: 135kg
