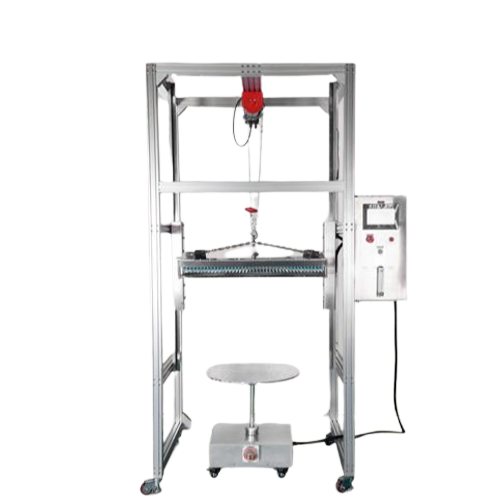

Uby Tech IPX1-2 垂直落雨试验 (Column type)

Used to test the IPX1, IPX2 waterproof level of the product

Specifications

External size: About L1500*D1200*H2360mm

Inner size: 1000*1000mm

Drip board size: ¢600mm

Turntable diameter: ¢0.4mm

Turntable height: 20*20mm

Drip aperture: 600mm

Distance between drip holes: IPX1=1mm/min (+0.5mm/min); IPX2=3mm/min (+0.5mm/min)

Rainfall: Manual adjustment

Flow adjustment method: 800—1800mm Adjustable

Drop rain board lifting method: Not liftable (fixed)

Turntable load-bearing: 50KG

Turntable tilt: 0° or 15° (horizontal direction)

Turntable speed: 1 r/min (IPX1), Can be set

Testing time: 0-999 min

Safety protection device: Leakage protection, water shortage protection, short circuit protection

Power supply: 220V, 50Hz

Power: 1kW; Molded aluminum

Detail

Datasheet
