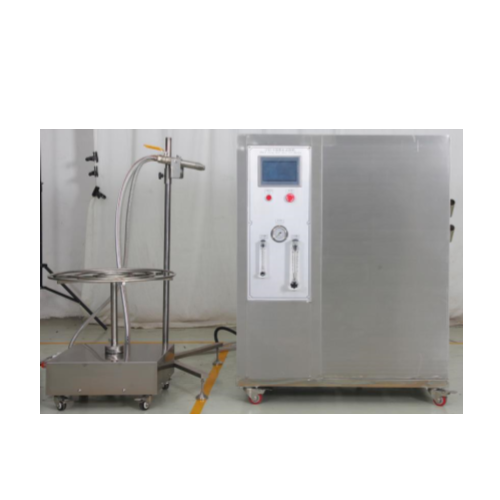

Uby Tech IPX5-6 喷水试验机 (Open Type)

Used to test the IPX5 and IPX6 waterproof level of the product

Specifications

External size: L1100*D900*H1300 (With casters)

Turntable size: L600*W600*H600mm (With casters)

Storage tank volume: 550L, 800×600×1145(mm)

Sample turntable size: ¢600mm

IPX5 water jet aperture:¢6.3mm

IPX6 water jet aperture: ¢12.5mm

IPX5 spray water flow: 12.5±5% (L/min)

IPX6 spray water flow: 100±5% (L/min)

Flow control method: Manual adjustment (rotor flowmeter)

Spray distance: 2.5-3米 (Controlled by the operator)

Maximum load-bearing capacity of turntable : 50KG

Lifting range of turntable: Not liftable (fixed)

Water spray method: One-time spray water, not recyclable

Control system: (Touch type) 7 inch touch screen +PLC

Power supply: 380V, 50Hz

Test sample power: 220V, 50Hz

Power: 3.0KW

Safety protection function: Leakage protection, water shortage protection, short circuit protection
