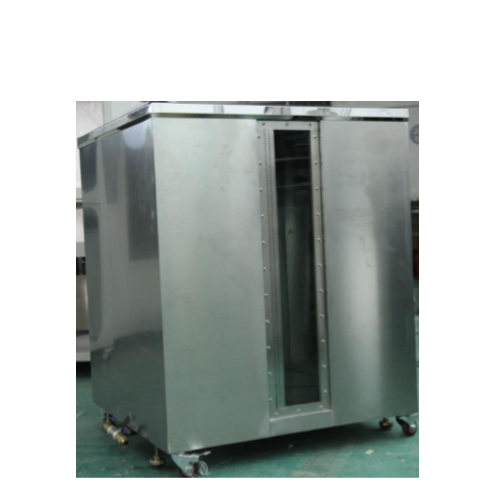

Uby Tech IPX7/8 浸水试验 (IPX7 Water Immersion)

Used to test the IPX7 waterproof level of the product


External dimensions: 1170*1100*1360mm (include aqueduct)

Inner dimension: 1000*1000*1200mm

Maximum test water depth: 1.2m

Inner box thickness: 1.5mm

Perspective viewing window: Tempered glass (thickness: 12mm)

Observation window width: 200mm

Water level adjustment method: Inlet/drain valve, manual adjustment

Water level display: Stainless steel ruler (accuracy 1mm), horizontal visual inspection

Rack material: Stainless steel square pass
