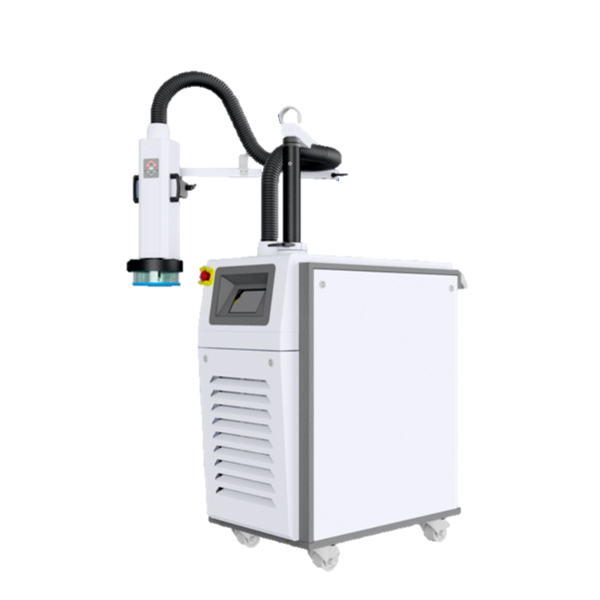

Uby Tech UP-6206 IC Chip Temperature Shock Testing Machine (-120℃～225℃)

Temp. range: -45℃～225℃/ -60℃～225℃/ -80℃～225℃/ -100℃～225℃/ -120℃～225℃

Heating power: 3.5kw/3.5kw/3.5kw/4.5kw/4.5kw

Cooling capacity:

- AT -45℃: 2.5kw

- AT -60℃: 2KW

- AT -80℃: 1.5KW

- AT -100℃: 1.2KW

- AT -120℃: 1.2KW

Temp. Accuracy: ±1℃

Cooling water at 25 ℃: 0.6m3/h; 1.5m3/h; 2.6m3/h; 3.6m3/h; 7m3/h

Power supply: 380V, 50Hz: 4.5kw max/ 6.8kw max/ 9.2kw max/ 12.5kw max/ 16.5kw max

Power supply: Can be customized 460V 60Hz, 220V 60Hz three-phase

Shell material: Plastic spraying of cold rolled sheet (standard color 7035)

Temperature expansion: High temperature to + 300 ℃
