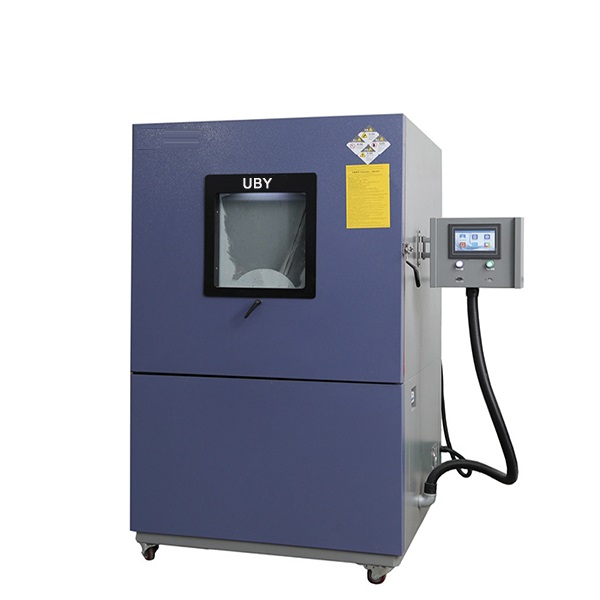

Uby Tech UP-6316 Dust Sand Proof Test Chamber (5~50℃, 45%~75%)

Temperature Range: environmental temperature + 5~50℃ (Adjustable)

Humidity Range: 45%~75% (Adjustable)

Metal net standard nominal line diameter: 50μm

Airflow velocity in the chamber: 1.5m/s (adjustable range 0~4.99m/s)

Environmental air pressure: 85Kpa~106Kpa

Test dust: dry talcum powder, portland cement, smoke ash and etc.

Line spacing between the standard: 32μm, 75μm and 250μm (There are three Metal nets)

Selecting dust concentration control instrument: get sample through the optical principle, show the dust concentration and automatic control powder quantity that entering into the Cabinet according to the concentration of the set: (needed cleaning compressed air source configuration, require the pressure: 1~3 kg/cm3)

Power supply: 380V 3phases 50 Hz/60Hz
