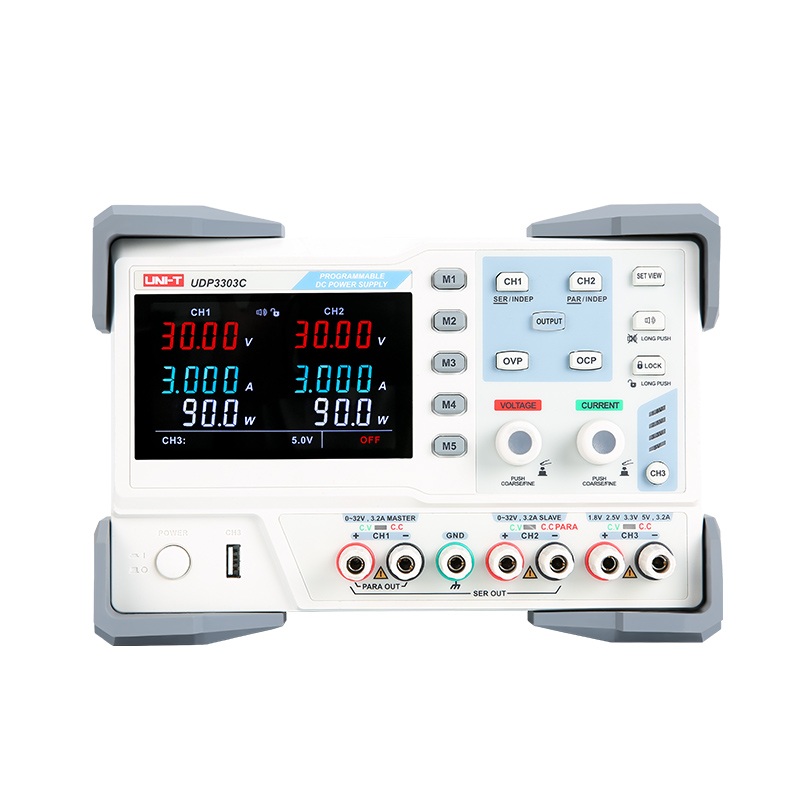

UNI-T UDP3303C 工业线性DC电源 (3CH,30V,3A,195W)

Output voltage: 0~30V (CH1/CH2)

Output current: 0~3A (CH1/CH2)

Output power: 195W

Accuracy:

+ Voltage: <0.5%+20mV

+ Current: <0.5%+5mA

Display: 4 bit

Interfaces: USB Host (5V/2A, charging port only), digital interface, USB Device, RS-232

Programmable: Yes

Over voltage/current protection: Yes

Over temperature protection: Yes

Ripple (20Hz~20MHz): Voltage: ≤1mVrms; Current: ≤3mArms

Power: Input voltage: AC 100V/120V/220V/230V±10%, 50Hz/60Hz

Product net weight: 10kg

Product size: 240mm x 151mm x 327mm

Standard accessories: Power cord, output cables, USB cable (UDP3303C), PC software CD

Details

VIDEO

[%youtube id="FM0GYIJvjDA" width="100%" center="1"%]


Datasheet
