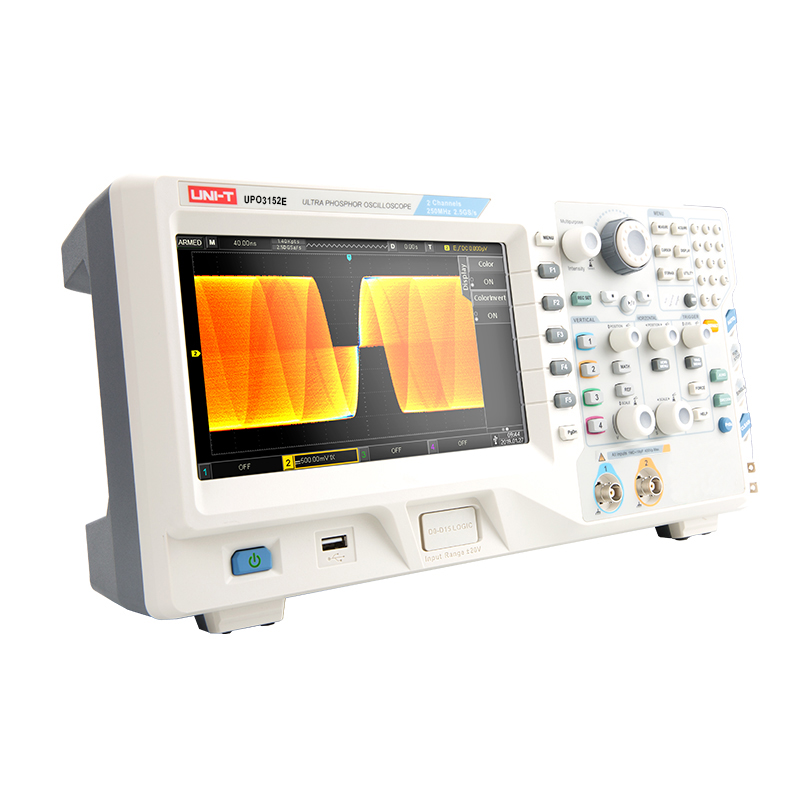

UNI-T UPO3152E 超荧光示波器 (150MHz,2CH,2.5GS/s)

Analog bandwidth: 150MHz

Channels: 2

Sampling rate: 2.5GS/s (Single channel), 1.25GS/s (Dual channels/Four channels)

Memory depth: Each channel: auto, 7kpts, 70kpts, 700kpts, 7Mpts, 70Mpts selectable

(open the 4 channels at the same time)

Waveform capture rate: 200,000wfms/s

Time base scale (s/div): 2ns/div~40s/div (Real-time sampling rate, memory depth display)【Step by 1-2-4 stall】

Input impedance: (1MΩ±1%) II (18pF±3pF)

Vertical scale: (V/div) 1mV/div~20V/div (1MΩ)

DC gain accuracy: <5mV: ±3%, ≥5mV: ±2%

Waveform record Single channel: 100,000 frames; Adjustable interval: 1.00ms~1000s

Trigger types: Edge, Runt, Window, Nth Edge, Delay, Overtime, Duration, Setup/Hold, Pulse Width, Slope, Video, Code; RS232/UART, I2C, SPI, USB, CAN, LIN, FlexRay

Bus decode: RS232/UART, I2C, SPI, USB, CAN, LIN, FlexRay

Waveform operations: A+B, A-B, AxB, A/B, FFT, editable advanced and logical operations

Auto measurements: Max, Min, High, Low, Ampl, Pk-Pk, Middle, Mean, CycMean, RMS, CycRMS, Period, Freq, Rise, Fall, Rise Delay, Fall Delay, +Width, -Width, FRR, FRF, FFR, FFF, LRF, LRR, LFR, LFF, +Duty, -Duty, Area, CycArea, OverSht, PreSht, Phase, 34 parameters in total

Measurement display: 5 types

Measurement statistics: Average, Max, Min, standard deviation, and number of measurements

Frequency counter: 6 bits

Interfaces: Standard: USB Host, USB Device, LAN, EXT Trig, AUX Out (Trig Out, Pass/Fail), VGA

Optional: AWG

General Characteristics

Power: 100V~240V ACrms, 50Hz/60Hz

Display: 8-inch TFT LCD, WVGA (800 x 480)

Product color: White and grey

Product net weight: 4.2kg

Product size: 370mm x 195mm x 125mm

Standard accessories: Probe x 2/4 (1x, 10x switchable), power cord, USB interface cable
