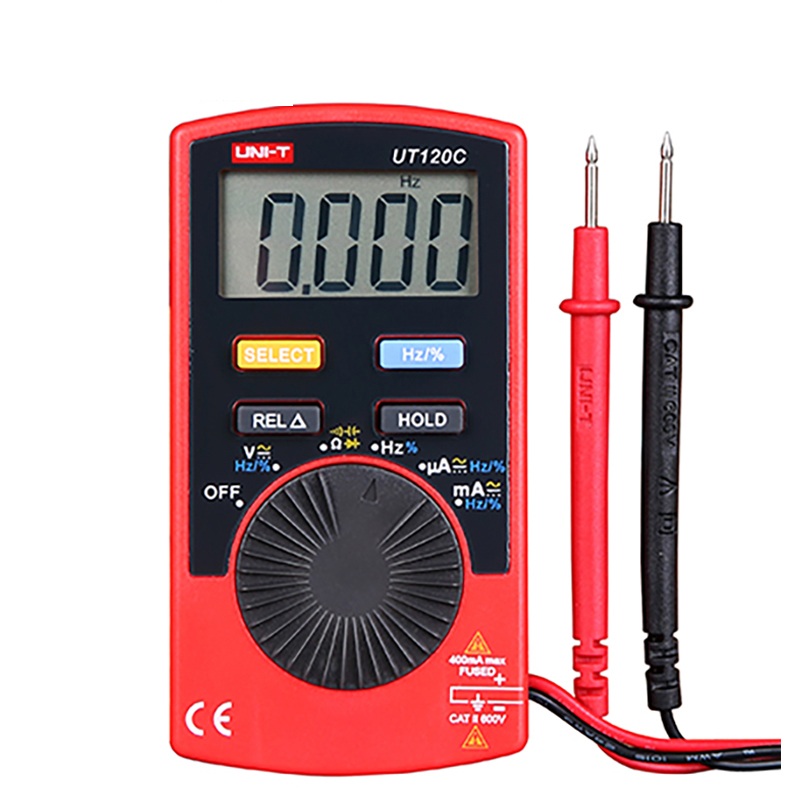

UNI-T UT120C Pocket Size Digital Multimeter (600V,400mA,True RMS)

DC voltage (V): 600V: ±(0.8%+1)

AC voltage (V): 600V: ±(1.2%+3)

DC current (A): 400mA: ±(1%+3)

AC current (A): 400mA: ±(1.5%+5)

Resistance (Ω): 40MΩ: ±(1%+2)

Capacitance (F): 100μF: ±(4%+3)

Frequency (Hz): 100kHz: ±(0.5%+3)

Power: 3V battery (CR2032)

Display: 43mm x 22mm

Product color: Red and grey

Product net weight: 76g

Product size: 110mm x 58.2mm x 10.8mm

Standard accessories: Battery, carrying case

Input impedance: ≥10MΩ

Category ratings: CAT II 600V

Drop test: 1m

Features

Display count: 4000

Auto range: Yes

Bandwith: 400Hz

True RMS: Yes

Duty cycle: 0.1%~99.9%

Diode test: Yes

Continuity buzzer: Yes

NCV: No

Relative mode: Yes

Low battery indication: Yes

Data hold: Yes

Auto power off: Yes

Input alarm: No

Input Impedance: ≥10MΩ

Category ratings: CAT II 600V

Drop test: 1m
