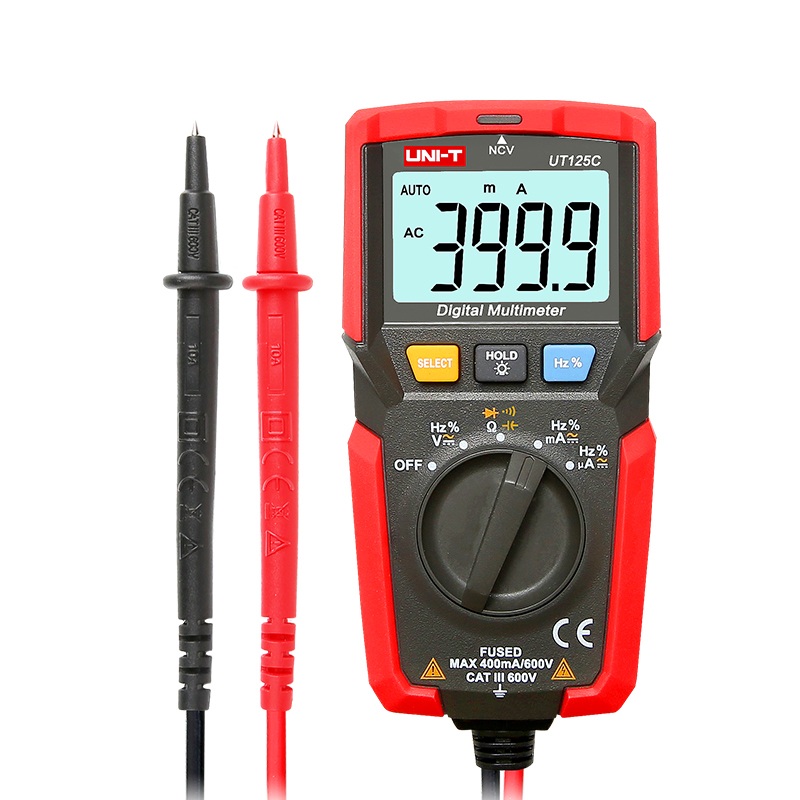

UNI-T UT125C 数显万用表 (600V,400mA,True RMS,±0.5%)

DC voltage (V): 600V ±(0.5%+5)

AC voltage (V): 600V ±(1.2%+5)

DC current (A): 400mA ±(1.8%+5)

AC current (A): 400mA ±(2%+8)

Resistance (Ω): 40MΩ ±(1%+5)

Capacitance (F): 100μF ±(4%+10)

Frequency (Hz): 10Hz~60kHz ±(0.1%+5)

Duty cycle: 20%~80%

Power: 1.5V battery (R03) x 2

Display: 38mm x 23mm

Product color: Red and grey

Product net weight: 180g

Product size: 112mm x 58mm x 35mm

Standard accessories: Batteries

Input impedance: ≥10MΩ

Category ratings: CAT III 600V

Drop test: 1m

Features

NCV: Yes

Diode test/Continuity test: Yes

Low battery indication: Yes

Data hold/Auto power off: Yes

Operating temperature: 0°C~50°C
