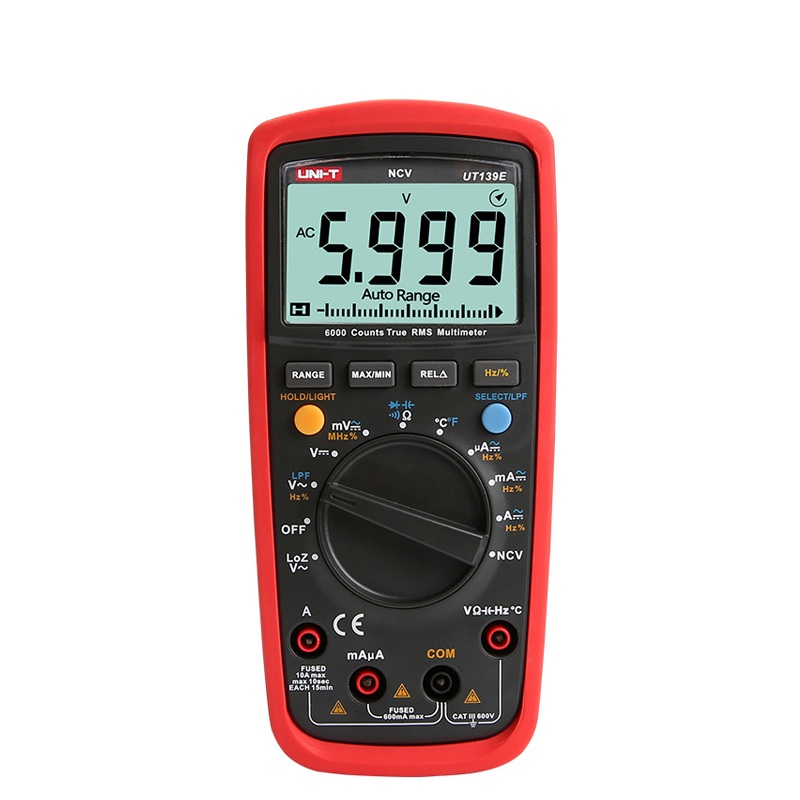

UNI-T UT139E Digital Multimeter (600V,10A,True RMS)

DC voltage (V): 600V ±(0.5%+2)

AC voltage (V): 600V ±(0.8%+3)

DC current (A): 10A ±(0.7%+2)

AC current (A): 10A ±(1%+3)

Resistance (Ω): 60MΩ ±(0.8%+2)

Capacitance (F): 99.99mF ±(4%+5)

Frequency (Hz): 10Hz~10MHz ±(0.1%+4)

Temperature (°C): -40°C~1000°C ±(1%+4)

Temperature (°F): -40°F~1832°F ±(1.5%+5)

Power: 1.5V battery (R6) x 2

Display: 58mm x 36mm

Product color: Red and grey

Product net weight: 345g

Product size: 170mm x 80mm x 48mm

Standard accessories: Batteries, test leads, temperature probe

Features:

LPF/LoZ (ACV): Yes

Display count: 6000

Auto range: Yes

Bandwith (Hz): 45Hz~400Hz

True RMS: Yes

Diode test: Yes

Peak hold: No

Continuity buzzer: Yes

NCV: Yes

MAX/MIN: No

Relative mode: No

VFC/LPF: Yes

Analog bar: Yes

Data hold: Yes

Auto power off: Yes

LCD backlight: Yes

Input alarm: Yes

Input impedance: 10MΩ~1GΩ

Category ratings: CAT III 600V

IP rating: No

Drop test: 1m
