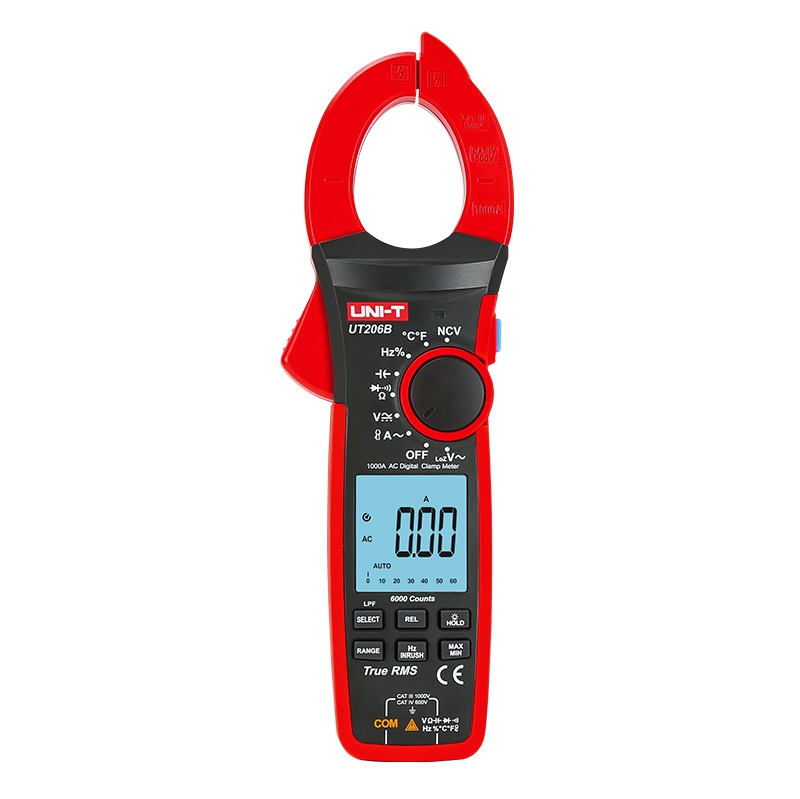

UNI-T UT206B 数显钳形表 (AC 1000A,True RMS)

AC current (A): 1000A ±(2%+5)

AC current frequency response: 50Hz~60Hz

Inrush current (A): 1000A ±(10%+10)

AC voltage (V):

+ 6V ±(1.2%+3)

+ 60V/600V/1000V: ±(1%+8)

DC voltage (V):

+ 600mV ±(0.8%+3)

+ 6V/60V ±(0.5%+5)

+ 600V ±(0.5%+5)

+ 1000V ±(0.5%+5)

Low pass filter (LPF ACV): 600V/1000V ±(2%+5)

AC voltage frequency response: 40Hz~400Hz

LoZ ACV: 600V/1000V ±(2%+5)

Resistance (Ω):

+ 600Ω ±(1%+3)

+ 6KΩ/60KΩ/600KΩ ±(1%+2)

+ 6MΩ/60MΩ ±(2%+8)

Capacitance (F):

+ 60nF ±(4%+25)

+ 600nF/6μF/60μF/600μF ±(4%+5)

+ 6mF/60mF ±(10%+9)

Temperature (°C): -40°C~300°C ±(1%+20), 300°C~1000°C ±(1%+2)

Low voltage frequency (Hz): 10Hz~1MHz ±(0.1%+3)

Duty cycle (%): 10%~90% ±(2.6%+7)


Power: 1.5V battery (R03) x 3

Display: 43mm x 45mm

Product color: Red and grey

Product net weight: 465g

Product size: 272mm x 81mm x 43.5mm

Standard accessories: Batteries, test leads, point contact temperature probe

Features

Display count: 6000

Auto/Manual range: Yes

Jaw opening: 42mm

True RMS: Yes

Diode test: Yes

Continuity buzzer: Yes

NCV: Yes

MAX/MIN: Yes

Relative mode: Yes

VFC: Yes

Zero mode: No

Data hold: Yes

Auto power off: Yes

Flashlight: Yes

LCD backlight: Yes

Analog Bar: Yes

Input Impedance: ≥10MΩ

Category ratings: CAT IV 600V, CAT III 1000V

Drop test: 1m

CE certification: Yes
