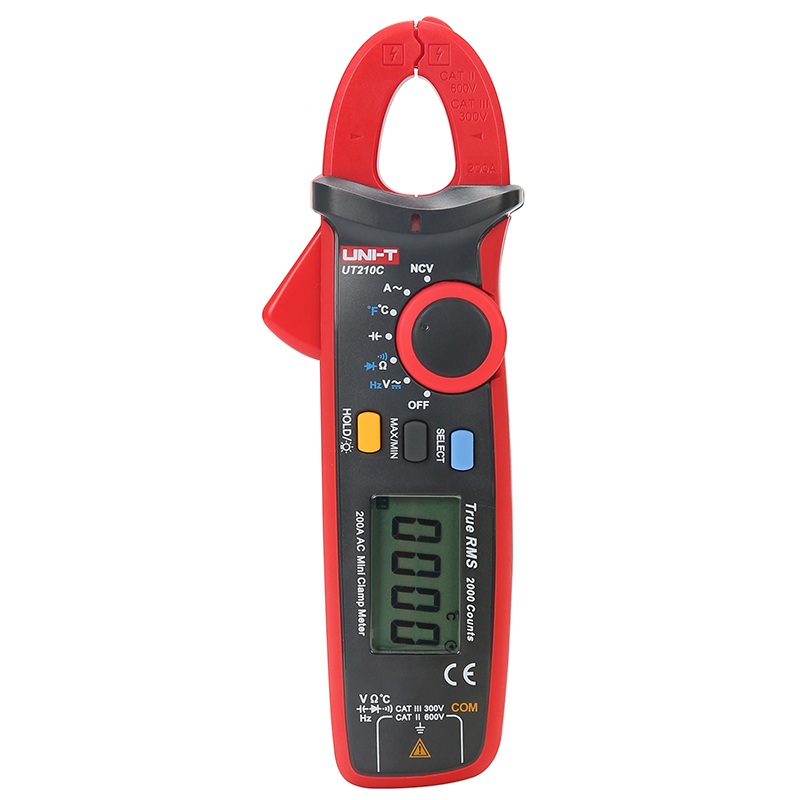

UNI-T UT210C Mini Clamp Meter (AC/DC 200A,True RMS)

AC current (A): 200A ±(2%+10)

AC voltage (V): 600V ±(1%+3)

DC voltage (V): 600V ±(0.7%+3)

Resistance (Ω): 20MΩ ±(1%+2)

Capacitance (F): 20mF ±(4%+5)

Temperature: -40~1000°C ±(1%+3), -40~1832°F ±(1.5%+5)

Power: 1.5V battery (R03) x 2

Display: 39.3mm x 26.5mm

Product color: Red and grey

Product net weight: 170g

Product size: 175mm x 60mm x 33.5mm

Standard accessories: Batteries, test leads, point contact temperature probe

Features

Display count: 2000

Auto range: Yes

Jaw opening: 17mm

True RMS: Yes

Diode test: Yes

Continuity buzzer: Yes

NCV: Yes

MAX/MIN: Yes

Relative mode: No

Zero mode: No

Data hold: Yes

Auto power off: Yes

LCD backlight: Yes

Input protection: Yes

Input Impedance: >10MΩ

Category ratings: CAT II 600V, CAT III 300V

Drop test: 1m
