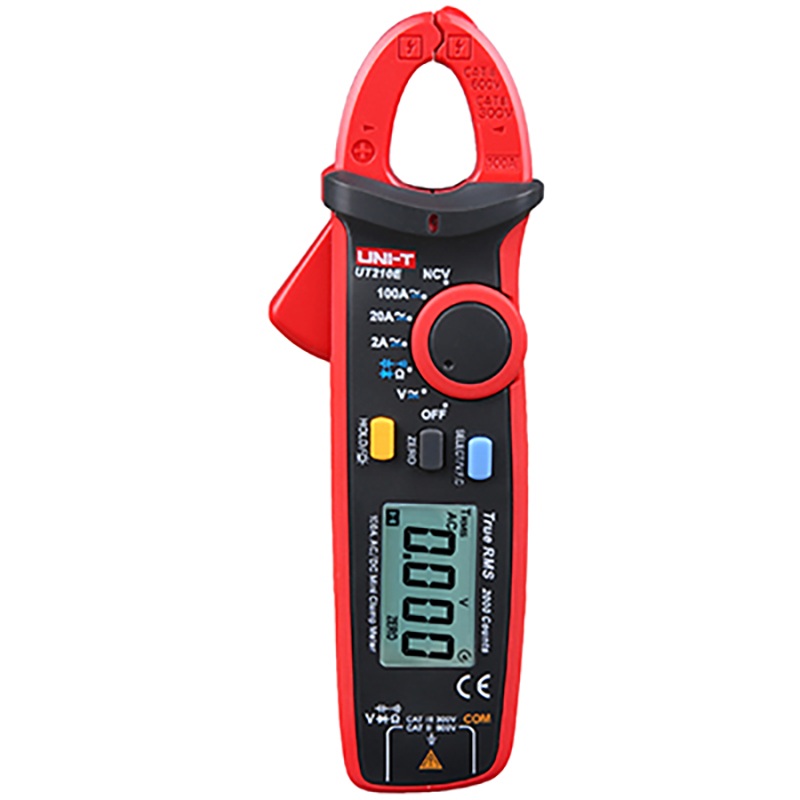

UNI-T UT210E Digital clamp meter (AC/DC 100A,True RMS)

AC current (A): 100A ±(2.5%+5)

DC current (A): 100A ±(2%+3)

AC voltage (V): 600V ±(1%+3)

DC voltage (V): 600V ±(0.7%+3)

Resistance (Ω): 20MΩ ±(1%+2)

Capacitance (F): 20mF ±(4%+5)

Power: 1.5V battery (R03) x 2

Display: 39.3mm x 26.5mm

Product color: Red and grey

Product net weight: 170g

Product size: 175mm x 60mm x 33.5mm

Standard accessories: Batteries, test leads

Features

Display count: 2000

Auto range: Yes

Jaw opening: 17mm

True RMS: Yes

Diode test: Yes

Continuity buzzer: Yes

NCV: Yes

MAX/MIN: No

Relative mode: No

VFC: Yes

Zero mode: Yes

Data hold: Yes

Auto power off: Yes

LCD backlight: Yes

Input protection: Yes

Input Impedance: >10MΩ

Category ratings: CAT II 600V, CAT III 300V

Drop test: 1m
