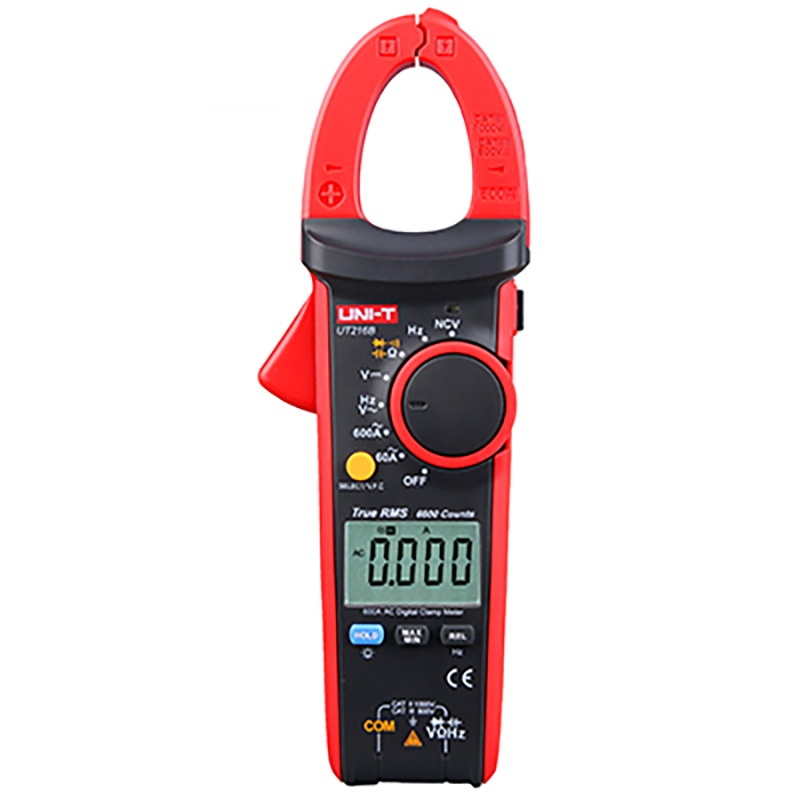

UNI-T UT216B Digital Clamp Meter (AC 600A,True RMS)

AC current (A): 600A ±(2.5%+5)

AC current frequency response: 40~400Hz

AC voltage (V): 750V ±(1.2%+5)

AC voltage frequency response: 40~400Hz

DC voltage (V): 1000V ±(0.8%+1)

Resistance (Ω): 60MΩ ±(1%+2)

Capacitance (F): 60mF ±(4%+5)

Frequency (Hz): 10Hz~1MHz ±(0.1%+4)


Power: 1.5V battery (R03) x 3

Display: 38mm x 24mm

Product color: Red and grey

Product net weight: 231.7g

Product size: 220mm x 75mm x 40mm

Standard accessories: Batteries, test leads


Features

Display count: 6000

Auto range: Yes

Jaw opening: 30mm

True RMS: Yes

Diode test: Yes

Continuity buzzer: Yes

NCV: Yes

MAX/MIN: Yes

Relative mode: Yes

VFC: Yes

Zero mode: No

Data hold: Yes

Auto power off: Yes

Flashlight: Yes

LCD backlight: Yes

Input protection: Yes

Input Impedance: >10MΩ

Category ratings: CAT II 1000V, CAT III 600V

Drop test: 1m
