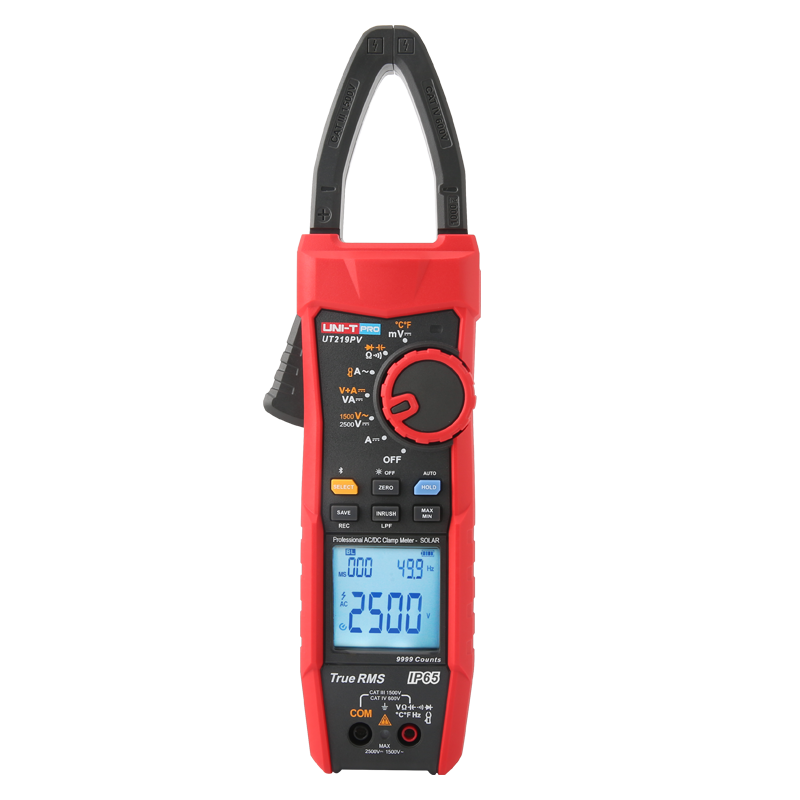

UNI-T UT219PV 专业交直流钳形表 (AC/DC: 999.9A; AC: 1500V; DC: 2500V)

Technical Specifications:

Current (ACA): 999.9 A: 40Hz~100Hz; ±(2.0%+5); 100Hz~1000Hz: ±(2.5%+5)

Current (DCA): 999.9 A; ±(2.0%+5)

Voltage (ACV): 999.9V/1500V; 40Hz~1000Hz: ±(1.0%+5)

Voltage (DCV): 999.9V/2500V; ±(1.0%+5)

Voltage (DC mV): 999.9 mV; ±(1.0%+5)

ACV(with LPF): 999.9V;: ±(2.0%+9)

ACA(with LPF): 999.9A; ±(2.5%+9)

ACA(with LPF): flex clamp sensor: 30.00A/300.0A/3000A; ±(4.0%+9)(center area)

ACA;with flex clamp sensor: 30.00A/300.0A/3000A; ±(3.0%+5) (center area)

Power (DC): 999.9 kVA/2500 kVA; ±(2.0%+20)

Frequency (A&V):  5.0 Hz to 999.9Hz; ±(0.5%+5)

Resistance (Ω): 999.9Ω/9.999KΩ/99.99kΩ; ±(1.0%+5)

Cpacitance(F): 100.0μF/1000 μF; ±(1.0%+5)

Temperature:  -40℃~400℃/-40℉~752℉;: ±(1.0%+30); ±(1.0%+60)


True RMS: √

Display count: 9999

Display: LCD: Dual display (V+A)

Jaw (Max conductor dia.): 35mm

Diode: √

Solar panel polarity indication: when <-10 DCV, Audible & Visual alarm

High voltage alarm: √

Over range indication: √


Inrush current: √


Bluetooth app: BT 5.0

Auto backlight: √

Low battery indication: √

Flexiable clamp compatible: UT-CS09D (optional)

IP rating: IP65

Overvoltage category: CAT III 1500V; CAT IV 600V

Certificates: CE, cETLus, RoHS

General Characteristics:

Power supply: 2 * AA

Product dimension: 295mm x 73mm x 50mm

Product color: Grey + Red

Accessories: test probe, temperature probe, batteries, manual
