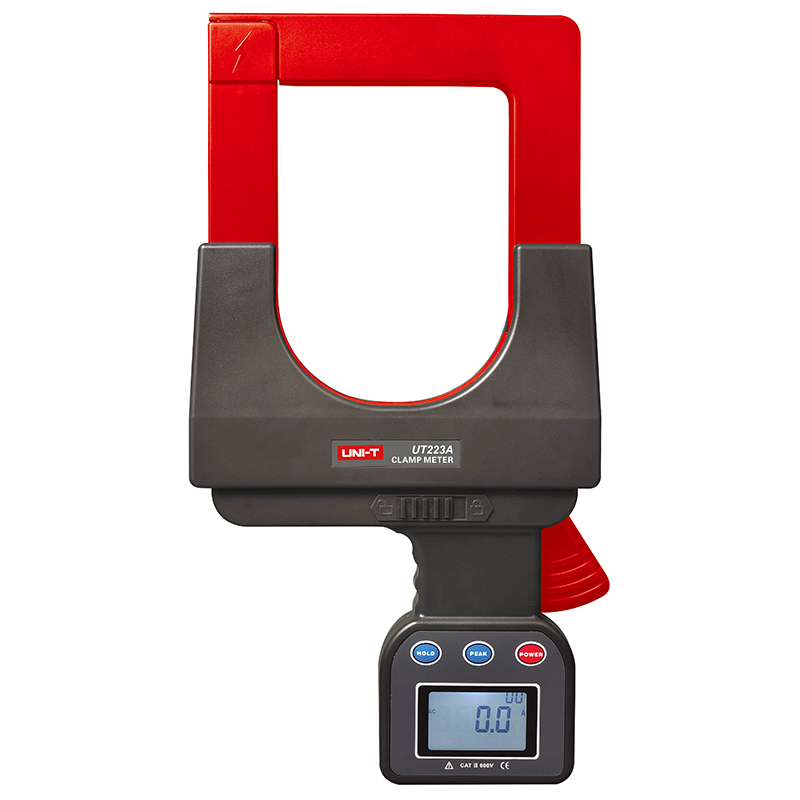

UNI-T UT223A 电流钳形表 (AC 4000A)

Current (A):

+ 0.0mA~499A ±(2%+5)

+ 500A~999A ±(3%+5)

+ 1000A~2999A ±(4%+5)

+ 3000A~4000A ±(5%+5)

Resolution: 0.1A

Test Range: AC 0.A~4000A

Display Mode: 4 Digits LCD Display

Clamp Size: 108mm×148mm (can clamp electric cable of 108mm diameter, or 160mm*4mm flat cable and steel earth wires)

Auto Range: Yes

RS-232: Yes

Data Storage: 99

LCD Backlight: Yes

Date Hold: Yes

Overload Protection: OL

Auto Power Off: 5 Minutes

Low Battery Indication: ≤5.2V

Test Model: Clamp CT, integral mode

Power: 6V DC (LR6×4 Alkaline Batteries)

LCD Size:  47mm×28.5mm

Product Color: ed and grey

Product Net Weight: 1.5kg (Included Batteries)

Product Size: 350mm×180mm×55mm

Standard Accessories: Batteries, RS232 Interface Cable, Software CD, Toolbox
