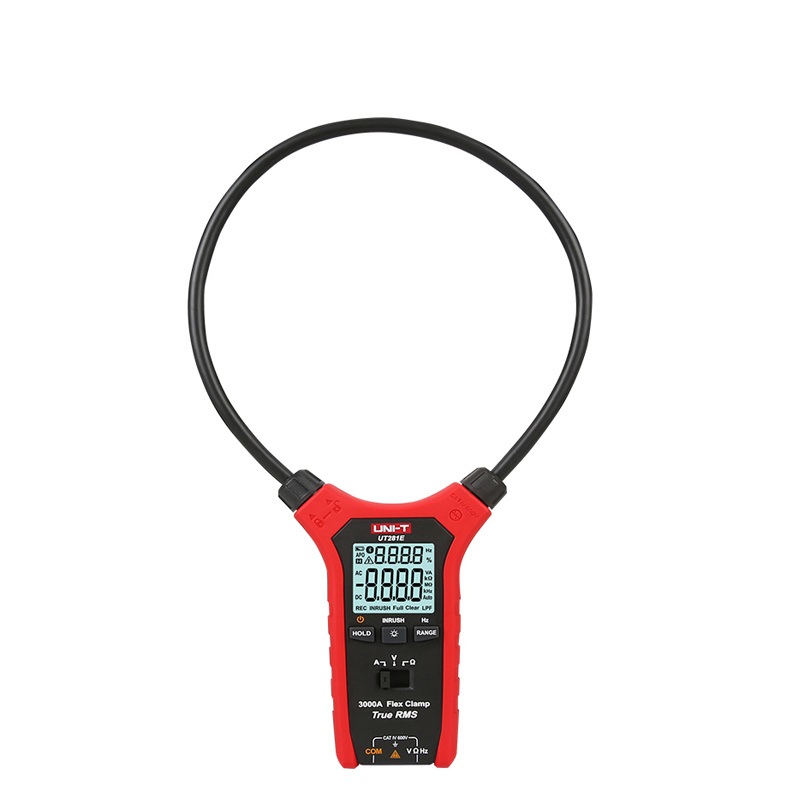

UNI-T UT281E 软式钳形表 (AC 3000A,True RMS)

AC current: 3000A

Frequency response: 45~500Hz

Inrush current: 3000A

AC voltage: 600V ±(1.2%+3)

Resistance: 60MΩ ±(1.2%+3)

Frequency: 20Hz~30kHz ±(1%+2)

Range selection: Manual

Flex coil size: 18” (45.7cm)

Display count: 6000 (3000 in current

measurement)

Refresh rate: 3 times/s

True RMS: Yes

Display interface (LCD): Dual

Data hold: Yes

Buzzer: Yes

Auto power off: Yes

Low battery indication: Yes

LCD backlight: Yes

Function selection: Yes

Drop test: 2m

IP rating: No

Category ratings: CAT IV 600V

Power: 1.5V battery (R03) x 3

Display: 32 x 34mm (1.8")

Product color: Red and grey

Product net weight: 250g

Product size: 325mm x 180mm x 30mm

Standard accessories: Batteries, test leads
