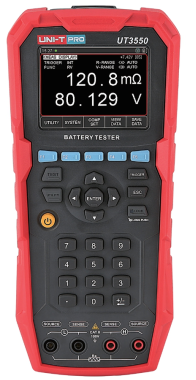

UNI-T UT3550 电池测试仪 (100V, 30Ω)
制造商: UNI-T Model: UT3550 - 报价要求
- 联系
Voltage range:10V,100V
Voltage resolution: 100μV,1mV
Voltage accuracy: ±0.05%rdg ±5dgt
Resistance range: 3mΩ,30mΩ,300mΩ,3Ω,30Ω
Resistance resolution: 1μΩ,10μΩ,100μΩ,1mΩ,10mΩ
Resistance accuracy: ±0.5%rdg ±5dgt
Range Mode: Auto and Manual(resistance and voltage)
Calibration: Short circuit full range to zeroed
Testing Speed: 1/s(manual range)
Filter function: low limit and conform.Sorting result has two output situations: PASS and FAIL.
Beeper: OFF, OK, NG
Comparison Mode: Absolute deviation(ABS) , Relative deviation(PER) ,Direct-reading(SEQ)
Other Function: Lock keypad, U disk storage, keypad tone, Chines/English language, screenshot
Test Terminal: Four-terminal test method
Trigger: Internal, manual and remote trigger
Storage: Internal 500 groups, exportable CSV files
Interface: Type-c interface (communication)/USB DEVICE (storage) /charge interface
Upper-computer Software: SCPI
Power: AC 100~240V, 50/60Hz
Display: 3.5 inch LCD display +0.96 inch OLED on the top
Product size (W×H×D): 114.5mm×251.9mm×85.3mm
Product net weight: 0.84kg
