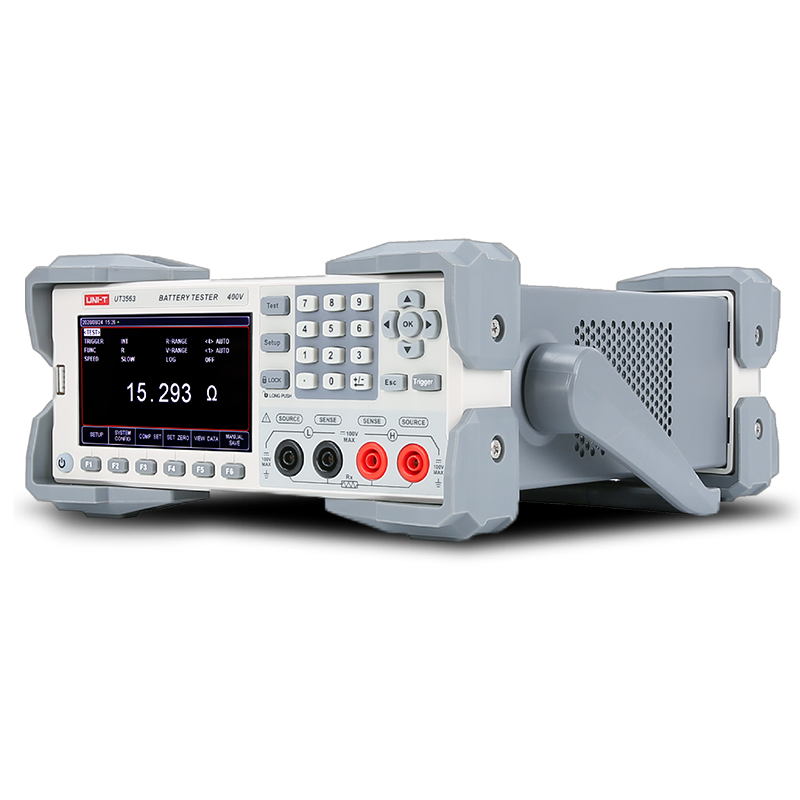

UNI-T UT3562 电池内阻测试仪 (0-100V; 0.1uΩ~3.2kΩ)

Voltage range: 6V/60V/100V

Resolution:

- Resistance: 0.1μΩ

- Voltage: 10μV

Speed: Slow/Medium/Rapid/High-speed

Resistance range: 3mΩ / 30mΩ / 300mΩ / 3Ω / 30Ω / 300Ω / 3kΩ

Temperature coefficient:

- Voltage: (±0.001%rdg.±0.3dgt)/°C

- Resistance: (±0.05%rdg.±0.5dgt)/°C

Basic accuracy:

- Resistance: 0.5%

- Voltage: 0.01%

Range mode: Auto and manual (resistance and voltage)

Maximum reading:

- Resistance: 31,000

- Voltage: 606,000

Calibration: Short-circuit full range zeroing

Beeper: OFF, PASS, FAIL

Comparing method: Absolute tolerance, percentage tolerance, direct-reading comparison

Button functions: Lock -keyboard lock, Print Sc-screenshot

System setup: Language: Chinese/English, key tone setting

Storage: FAT storage function (supports USB disk storage, mobile hard disk drive is not supported)

Interfaces & protocols: Handler interface, RS-232 and USB communication interface, SCPI and Modbus protocol

PC software: Yes

Power: AC 100~240V, 50/60Hz

Display: 4.3 inches LCD

Product net weight: 2.6kg

Product size (WxHx D): 340mm x 214mm x 89mm

Standard accessories

- International standard power cord

- User manual (Electronic file, official website download)

- UT-L82: Kelvin test lead xl

- UT-LSD: Crowd test lead xl

Optional accessories

- UT-L81: alligator clip test lead
