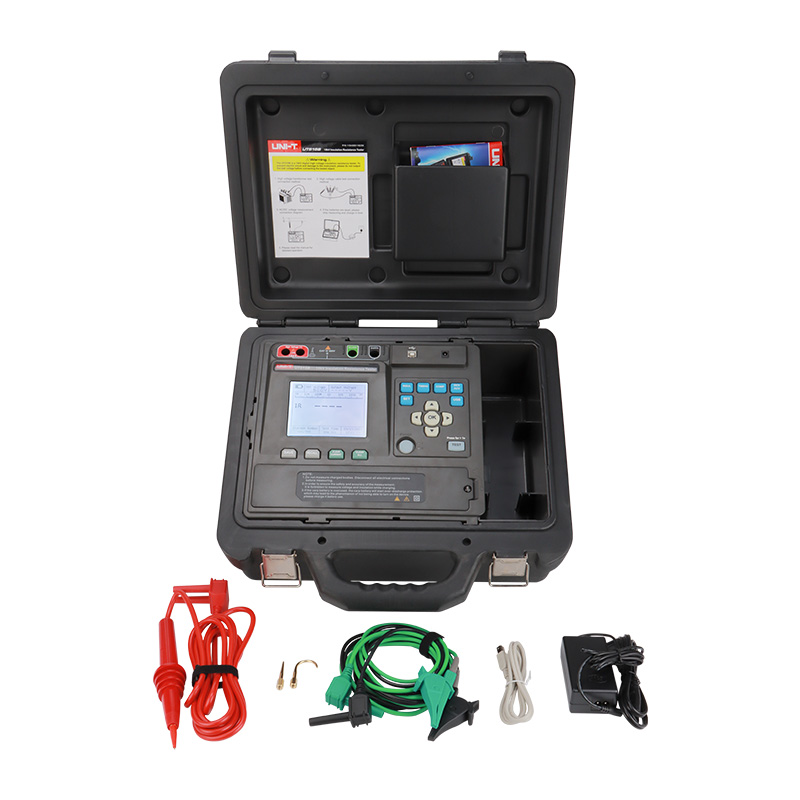

UNI-T UT515B 绝缘电阻测试仪 (10KV)

Insulation resistance(10KV): 10TΩ

output voltage: 500V~10000V

Rated current: ~1.2mA

Voltage measurement: DC: ±30V~±1000V; AC: 30V~750V (50~60Hz)


Display count: 9999

Short-circuit current: Output voltage at 500V/1000V: ≥3.7mA;  Output voltage at: 2500V/5000V/10000V: ≥5mA

IR stepping voltage: √ (10% of the range)

Leakage current: 0.01nA ~ 5.00mA,±(10%+5)

DAR: 0.00~999: ±2dgt

PI: 0.00~999: ±2dgt

Compare function: √

Timing measurement: √

Auto discharge: √ (with discharge process)

Output protection: √ (the energied target voltage >30V; indicating the “energized” icon)

Data storage: 999 set

Data transmission: √ (all data; via USB cable)

Powr on/off: √ (Manual/Auto )

OL & low battery indication: √

Testing indication: Long press to turn on; short press again to turn off

Backlight: Auto backlight

Rechargeable battery: 14.8V/5200mAh lithium battery pack

Power adaptor: Input: (AC)85V~250V/50~60Hz; Output: 2A/16.8V

Operation temp.: -10°C~50°C

Storage temp.: -20°C~60°C

Working humidity: ≤85% RH

Storage humidity: ≤75% RH

Working altitude: ≤2000m

Over voltage category: CAT IV 600V

Standard: EN 61010-1

General characteristics

Product color: Grey

Product weight: Around 7.4kg

Product dimension: Tool box: 432*427*202mm

Standard accessories: power adaptor 1pcs;  Test lead 3pcs (red/black/green); USB cable 1pcs; Manual 1pcs
