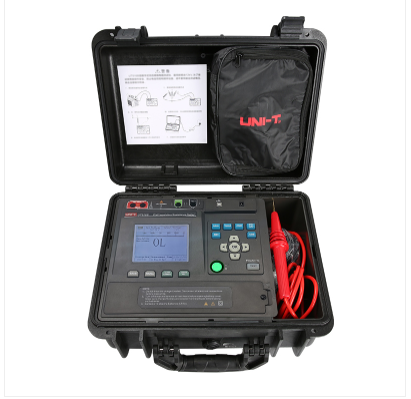

UNI-T UT516B 绝缘电阻测试仪 (0.50MΩ~10TΩ)

Insulation Resistance Measurement

500V

0.50MΩ~4.99G ±(5%+5)

5.00G-49.9GΩ ±(10%+10)

50.0GΩ-500GΩ for reference only

1000V

1.00MΩ-9.99GΩ ±(5%+5)

10.0G-99.9GΩ ±(15%+10)

100GΩ-1000GΩ for reference only

2500V

2.50MΩ-24.9GΩ ±(5%+5)

25.0G-249GΩ ±(15%+10)

250GΩ-2.5TΩ for reference only

5000V

5.00MΩ-49.9GΩ ±(5%+5)

50G-499GΩ ±(15%+20)

500GΩ-5.0TΩ for reference only

10000V

10.0MΩ-99.9GΩ ±(10%+10)

100G-999GΩ ±(20%+20)

1000GΩ-10TΩ for reference only

12000V

12.0MΩ-99.9GΩ ±(10%+10)

100G-999GΩ ±(20%+20)

1000GΩ-10TΩ for reference only

Output voltage

500V 0~+10%

1000V 0~+10%

2500V 0~+10%

5000V 0~+10%

10000V -5~+10%

12000V -5~+10%

Load current

500V (R=500KΩ) 1mA  0%---+20%

1000V (R=1MΩ) 1mA 0%---+20%

2500V (R=2.5MΩ) 1mA  0%---+20%

5000V (R=5MΩ) 1mA    0%---+20%

10000V (R=10MΩ) 0.15~1.2mA  0%---+20%

12000V (R=12MΩ) 0.15~1.2mA 0%---+20%

DC voltage measurement: 30V~1000V/±(3%+5)

AC voltage measurement: 30V~750V (50~60Hz) /±(3%+5)

Features

PC software for data analysis:

Backlight Function:

Date storage 999 sets of date:

Dielectric Absorption Ratio (DAR) : 0.00~999

Polarization Index (PI) 0.00~999:

General Characterisitics:

Power: 1.5V alkaline batteries (LR14)  X 10, power adapter

Product color: Red and grey

Product net weight: 6.6kg

Product size: 410*342*204mm

Standard accessories: User manual, Test leads (red/black/green 1 each),  USB cable, power adaptor, 1.5V alkaline batteries
