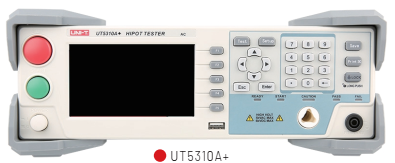

UNI-T UT5310R+ AC/DC/IR 可编程绝缘耐压测试仪 (10mA, 5KV AC, 6KVDC)

- Withstand voltage

Output voltage （AC ）: Voltage range: 0.050kV—5.000kV

                     Voltage waveform: Sine wave

                     Distortion degree: < 3％

                     Operating Frequency: 50/60Hz

                     Frequency accuracy:±1%

                     Output power: 50VA（5.000kV 10mA）

                     Voltage regulation: ±(1.0%+50V) (Rated power）

Output voltage （DC ）: Voltage range: 0.050 kV—6.000kV

                     Signal source: 600Hz

                     Output power: 30VA（6.000kV 5mA）

                     Voltage regulation: ±（1.0% +100V) （Rated power）

Voltage resolution: 1V

Voltage output accuracy: ±(1.0%Set value+5V) (No load)

Voltage test accuracy: ±(1.0%Reading+5V)

Maximum output current: 5mA

Maximum output power: 12.5VA（2500V/5mA）

Output instantaneous short-circuit current: >10mA(Set output voltage>500V)

Load regulation: ≤1％（Rated power）

Ripple（1kV）: ≤3% (1kV， No load)

Discharge function: Automatic discharge after test

Resistance measurement range: 0.2MΩ– 10GΩ

Resistance display range (1000V): 5mA 0.2 MΩ-1 MΩ

                                  1mA 1 MΩ-10 MΩ

                                  100uA 10 MΩ-100 MΩ

                                  10uA 100 MΩ-1GΩ

                                  1uA 1GΩ-10GΩ

Accuracy of resistance measurement: ≥500V

                                    1MΩ- 1GΩ: ±5%±5 digits,

                                    1GΩ-10GΩ : ±10%±5 digits;

                                    ＜500V

                                    0.2MΩ-1GΩ: ±10%±5 digits

                                    1GΩ– 10GΩ For reference only, no accuracy requirements

Current measurement accuracy: ±(1.5%reading+5digits) （after clearing）

- ARC Detector

Measuring range: AC: Off, level 1 ~ 9

                 DC: Off, level 1 ~ 9

- Comparator

Discrimination mode: Window comparison mode

                     Current lower limit ON: pass when I lower limit < Ix < I upper limit;

                     When Ix ≤ I lower limit or Ix ≥ I upper limit, fail. (I lower limit < I upper limit)

                     Current lower limit OFF: when Ix < I upper limit, pass; When Ix ≥ I upper limit, fail.

                     The discrimination method of insulation resistance is the same as above

Current upper limit setting: AC: 0.001mA – 10mA

                             DC: 0.1uA – 5mA

Current lower limit setting (LOWER OFF): AC: 0.001mA – 10mA

                                         DC: 0.1uA –5mA

Resistance upper limit setting: OFF， 0.1MΩ - 10GΩ

Resistance lower limit setting: 0.1MΩ– 10GΩ

Discriminant output: PASS/FAIL LCD and LED display respectively and sound alarm

Interface & protocol: USB host、 HANDLER、 RS232C， Optional RS485， SCPI protocol

Upper computer software: Yes

Power: AC 110V/220V±10% 50~60Hz

Display mode: 4.3 inch LCD screen

Product size（W×H×D）: 295mm×117.6mm×465mm

Product net weight: 8.3kg
