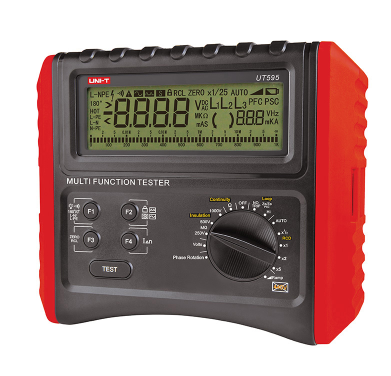

UNI-T UT595 多功能安装测试仪 (250V~1000V DC, 200mA)

Insulation resistance (Ω)

Output voltage: 250V/500V/1000V

250V 0.05MΩ~250MΩ

500V 0.05MΩ~500MΩ

1000V 0.05MΩ~1000MΩ

Short-circuit current: <2mA

Low-resistance continuity test

Range: 0.00Ω~199Ω

Test current: 0.00~2Ω: >200mA

Range: 0.01Ω~2000Ω

Line impedance (Ω)

Operating voltage (Frequency): 195V~440V (45Hz~65Hz)

Test current: 20A

PFC test: 0kA~26kA

Range: 0.01Ω~2000Ω

Loop impedance (Ω)

Operating voltage (Frequency): 195V~253V (45Hz~65Hz)

Test current: 20A

PFC test :0kA~26kA

Range: 1.00Ω~2000Ω

Non-trip loop impedance (Ω)

Range: 1.00Ω~2000Ω

Operating voltage (Frequency): 195V~253V (45Hz~65Hz)

Test current: 15mA

PFC test: 0kA~26kA

RCD test

Operating voltage (Frequency): 195V~253V (45Hz~65Hz)

Test current: 10mA/30mA/100mA/300mA/500mA

Phase sequence test

Operating voltage (Frequency): 100V~440V  (45Hz~65Hz)

Display Phase sequence: L1→ L2→ L3, forward rotation; L1→ L3→ L2 reverse rotation

Ramp RCD test

Test current: 10mA/30mA/100mA/300mA/500mA

AC voltage (V)

Range: 0V~440V

Frequency response: 45Hz~60Hz

Resolution: 1V

Features

Display count:   9999

Auto power off:

Low battery indication :

Data storage:

LCD backlight:

Auto half-wave test:

RCD count down test: 30s

RCD half-wave test:

Phase conversion (RCD): 0° and 180°

General Characteristics

Power: 1.5V battery (5#) × 6

LCD size: 125mm × 37mm

Product color: Red and grey

Product net weight: 1000g

Product size: 210mm × 175mm × 90 mm

Standard accessories: Battery, test leads (red×1, green×1, black×1), special power test lead, remote-control test lead
