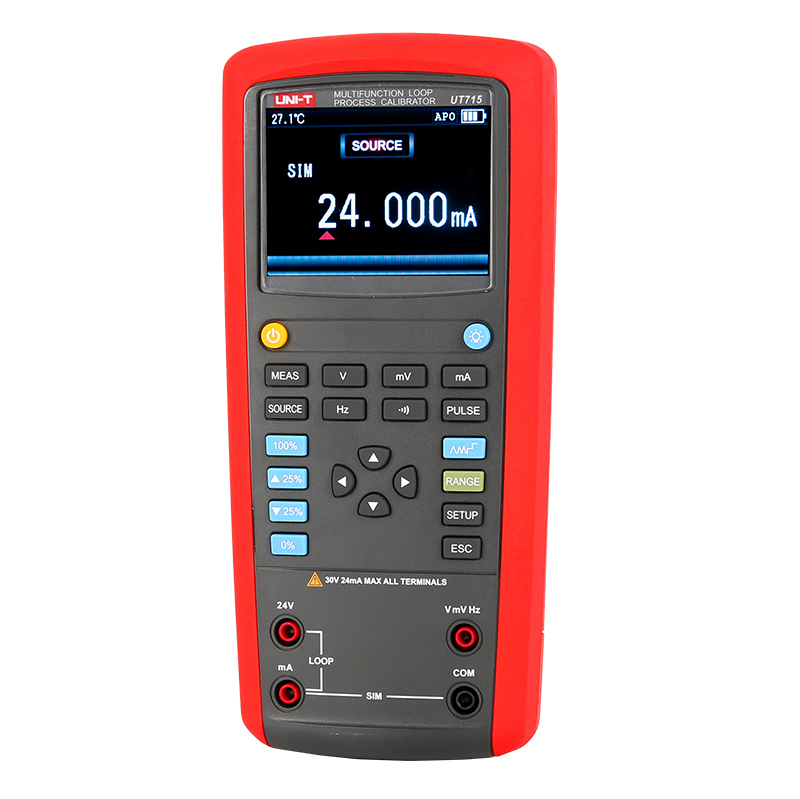

UNI-T UT715 多功能回路校准仪

Certificates: CE, RoHS

DC voltage (V): 200mV/30V ±(0.02%+2)

DC current (mA): 20mA ±(0.02%+2)

Loop current (mA): 20mA ±(0.02%+2)

Frequency (Hz): 100Hz/1kHz/10kHz/100kHz ±(0.01%+1)

Continuity test: Yes

Source

DC voltage (V): 100mV/1000mV/10V ±(0.02%+10)

DC current (mA): 20mA/20mA (SIM) ±(0.02%+2)

Frequency (Hz): 200Hz/2000Hz/20kHz ±(0.01%+1)

Pulses (Hz): 100Hz/1kHz/10kHz ±1

Loop power output: 24V ±10%

Display count: 20000

Operation temperature: -10°C~55°C

Power: 1.2V x 6 AA rechargeable battery

Product net weight: 650g

Product size: 195mm x 95mm x 58mm

Standard accessory: Test lead, USB cable, power adapter, English manual
