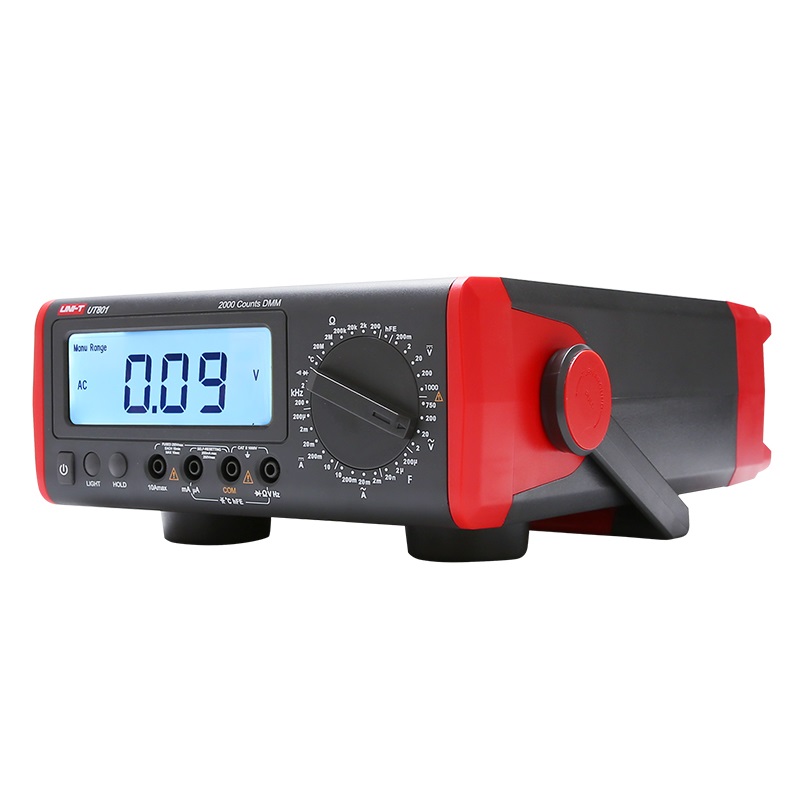

UNI-T UT801 Bechtop Digital Multimeter (DC/AC 10A)

DC voltage (V): 200mV/2V/20V/200V/1000V ±(0.5%+2)

AC voltage (V): 2V/20V/200V/750V ±(0.8%+3)

DC current (A): 200μA/2mA/20mA/200mA/10A ±(0.8%+2)

AC current (A): 2mA/20mA/200mA/10A ±(1.0%+3)

Resistance (Ω): 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ ±(0.8%+3)

Capacitance (F): 20nF/2μF/200μF ±(4%+3)

Frequency (Hz): 2kHz/200kHz ±(1.5%+5)

Temperature (°C): -40°C~1000°C ±(1.2%+3)

Display count: 2000

Auto/Manual range: Manual

Diode/Transistor: Yes

Continuity buzzer: Yes

Low battery indication: Yes

Data hold/LCD backlight: Yes

Misoperation alarm: Yes

Power: AC 220V/50Hz or 1.5V batteries (R14) x 6

Display: 108mm x 34.5mm

Product color: Red and grey

Product net weight: 1.65kg

Product size: 300mm x 245mm x 105mm

Standard accessories: Test lead, alligator clip, point contact temperature probe, multi-purpose socket; power adapter, RS-232 interface cable, USB interface cable
